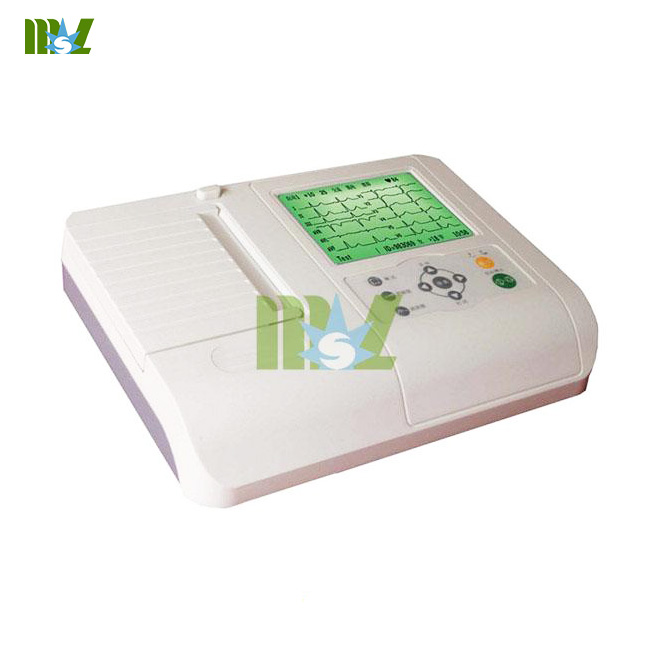

Product Name:  Six channel ecg machine for sale- MSLPE04
Latest Price: US $ 885 - 1000 / Set
Model No.:  885-1000
Weight:   Kg
Minimum Order Quantity:  1 Set
Supply Ability:  1200 Sets per month
Payment Terms:  L/C, T/T, Western Union, MoneyGram, Paypal
Size:
Color:
QTY:
Shino Hu

Quick Details



Type: Six channel digital ECG machine

Brand Name: MSL

Model Number: MSLPE04

Place of Origin: China (Mainland)

ECG Machine: Six channel

Screen: 5.7 inch LCD screen

Lead: standard 12 leads

Packaging & Delivery


Packaging Details: carton.
Delivery Detail: within 5-10 workdays afte receipt of payment.

Specifications

  1. Digital ECG machine
  2. Three channel ECG machine
  3. Portable ECG machine



Three channel with interpretive

Build in rechargeable Li battery

Chinese/English language

Simultaneous 12 leads

192X64 graphic LCD

Paper size: 63mmX20/30m

Built in RS232 interface (USB is optional)



                                                                                     Three channel ecg machine







Items

specification

Lead

standard 12 leads

lead acquisition

synchronously 12 leads

Data acquisition

18bit/1000Hz

Record mode

Manual mode;  AUTO1;  AUTO2;  AUTO3

Filter

AC, EMG,Drift Fliter

CMRR

≥100dB(with AC filter)

Input circuit

Floating; Protection circuit against Defibrillator effect

Input circuit current

≤0.1μA

Input Impedance

≥2.5MΩ

Patient current leakage

<10μA

Calibrating voltage

1mV±2%

Voltage tolerance

±500mV

Time constant

>3.2s

Frequency response

0.05 ~150Hz

Noise level

≤15μVp-p

Sensitivity valve

≤20μV

Inter-Channel Interference

≤0.5mm

Paper speed

25、50mm/s(±3%)

Sensitivity

AUTO,2.5,5,10,20mm/mV

Recording mode

Thermal Array printing

Paper specification

63mmx30m,roll

LCD display

192x64 graphic LCD,display status&waveform.

Safety classification

IEC60601-1 class I, type CF

Power supply

AC :110V/220V/110~230V,50/60Hz±1Hz;30VA

DC :14.4V(2000mAh) rechargeable Li-ion battery

Fuse

AC extend T500mA/125V     ¢5x20mm

AC extend T400mA/250V     ¢5x20mm

AC extend T2.0A/250V         ¢5x20mm
