Part name

MSLCX06

MSLCX05

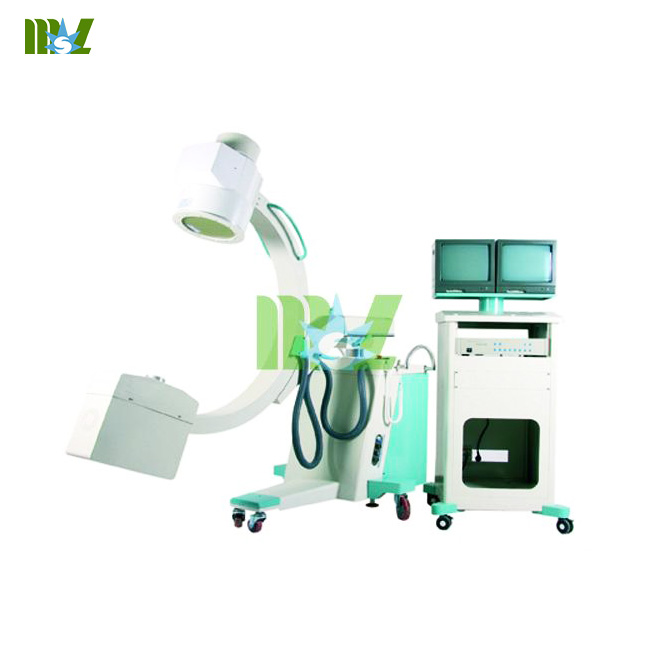

Configuration

High Frequency Inverter from IMD,Italy.

X-ray Tube and High Voltage Generator from IMD, Italy.With 1) Tube Window Shield

9 Inches 3 Fields of View Image Intensifier from Thales, France.

CCD Camera Fully Imported From Japan

X-ray LCD Monitor and Controller.With 1) Fluoroscopy Foot Switch   2) Radiography Hand Switch

Image Processing System

With 1) two 14" High Grey Scale Professional Medical Monitors,2) Mobile Console

Electrical Stand and C-arm.With 1) Collimator   2) X-ray Grid Imported From Korea

Specification

Frequency:40kHz

Tube Voltage:110kV

X-ray Tube and High Voltage Generator

Tube: fixed anode 3.5kW,Small Filament:0.6mm,Large Filament:1.5mm

Tube: rotating anode 5.0kW, Small Filament:0.3mm,Large Filament:0.6mm

Thermal Capacity and Heat Dissipation:667KHU(500KJ),air cooling and oil cooling

Thermal Capacity and Heat Dissipation:800KHU(600KJ), Air Cooling and Oil Cooling

Filtration:Inherent filtration:1.8mmAl,Added filtration:1mmAl×2.

9-Inch 3 Fields of View Image Intensifier

Input Screen Size:23/16/1cm

3 Fields of View Transfer:9"/6"/4.5"

CCD Camera

Image System:625 lines/50Hz;

Sensitivity:0.0003LUX

SNR(Signal Noise Ratio): ≥45 dB

X-ray LCD Monitor and Controller

LCD Display, Intelligent Operation

Fluoroscopy, Radiography kV Range:40~110kV(Step length: 1/10kV)

Fluoroscopy, Radiography kV Range:40~120kV(Step length: 1/10kV)

Continuous Fluoroscopy Current Range: 0.2~4mA(Step length: 0.1mA)

Enhanced Fluoroscopy Current Range:0.2~8mA(Step length: 0.1mA)

Current Time Product: Audible alarm after 3-minute working but the machine is still operational. It will stop automatically after 2 minutes. Manual Reset

Radiography Current Control:20~60mA section

Radiography Current Control:20~80mA section

Radiography mAs Control:1~120mAs

Radiography mAs Control: 1~150mAs

Image Memory

Image Matrix: 768×576, Grey Scale:10 levels

Image Storage:8 frames

Denoise:4 levels,Maximum to 8 frames

C-arm Stand

C-arm sliding along the arc: -30°~0~90°

C-arm vertical raising or lowering: Linear guides design:40mm(Electrical)

C-arm rotation around the horizontal axis: ±180°

C-arm horizontal extension:200mm

C-arm range of oscillation:±15°

Distance between focus and image intensifier:950mm

Depth in arc and opening:700mm,750mm

Collimator: electric double blades+ iris blades

No

Equipment Name

Unit

Quantity

1

High Frequency Inverter

set

1

2

X-ray Tube and High Voltage Generator

set

1

3

View Image Intensifier

set

1

4

X-ray LCD Monitor and Controller

set

1

5

CCD Camera

set

1

6

Image Memory

&
