Processeur médical de film à rayons X  est un type de nos machines à rayons X, si cela ne pourrait pas nourrir votre exigence, jetez un oeil à   d'autres produits à rayons X, tels que   radiographie numérique,machine à rayons X  portable, machine mobile de radiographie processeur de film à rayons X , machine à rayons X dentairec-bras machine à rayons X .

L'introduction de la machine à rayons X - Avez-vous déjà entendu parler de l'histoire de la découverte de rayons X? Comment rayons X a été découvert? Pouvez-vous comprendre certaines utilisations de machine à rayons X? ...

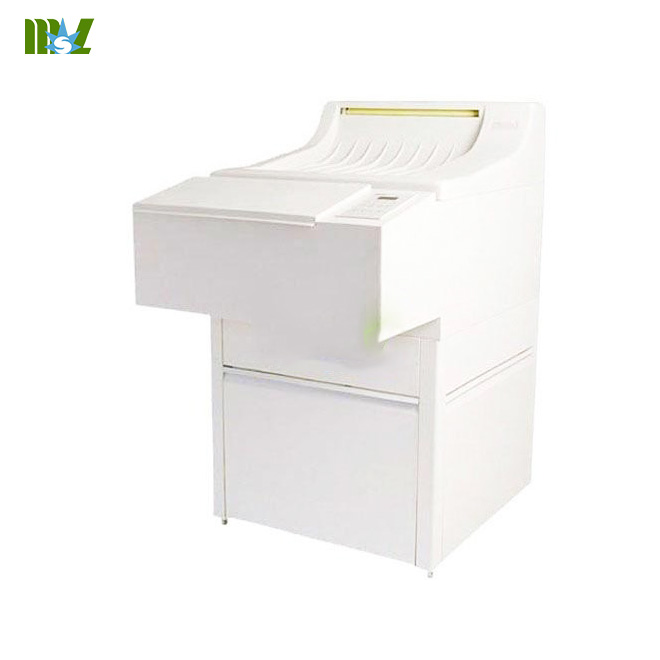

Nom De Produit:  Automatic film processor x ray - MSLXF02
Prix Franco A Bord: US $3825
Prix de liste:  3928
Prix:  3825
Poids:   Kg
Quantité Minimum De Commande:  1 Set
Capacité D'Offres:  1000 Sets per month
Modalités De Paiement:  L/C,T/T, Western Union, MoneyGram, Escrow, PayPal
MSL services


Détails du produit
Inquire Now

Quick Details

  • Properties: Medical X-ray Equipments & Accessories
  • Brand Name: MSL
  • Model Number: MSLXF02
  • Place of Origin: Guangdong, China (Mainland)
  • Item: X ray film processor
  • Certificates: CE

Emballage & livraison



Packaging Details: Plywood frame
Delivery Detail: 10-15 working days



Specifications

automatic film processor x ray - MSLXF02

1 Automatic X-ray film processor

2.Power:200V/50Hz/8.8A 2000W

3. x-ray film processor

《The introdution of x-ray machine》- Have you ever heard of the story about the discovery of X-ray? How was X-ray discovered? Could you figure out some uses of X-ray machine?...

Product feature



Digital display to set the parameters and actual data. Touch-sensitive buttons make adjustments more easily set parameters simple.

In contrast, fixing, washing, unique among the flume design, and the developer will not only reduce across-contamination between the solution to enhance the use of chemical time. Deep trench design, the film also make washing a cleaner, richer level film, video effects better.

Processor speed, rinse 220 (theoretical impulse) pieces for 14”×17”per hour. Any hospital can fully meet the needs of the irrigation rate.

With high-intensity-type roll axis, ensuring safe delivery film, and to convenient day-to-day cleaning. Application of electronic temperature control and the jet wind road technology to ensure not air drying film.

Technology parameters



1.Rinse width:minimun:3”×6”,maximum:14”×17”

2. Process time: 90~300s (full program), 25~70s (develop time)

3.Developer temperature:20°C~40°C(±0.3)(adjust)

4.Wash quantity:220 paper per hour,(14”×17”),280paper per hour(10”×12”)

5.Dry temperature: 20°C~70°C(adjust)

6. Channel volume: 12.5L for develop, fixation and wash each one.

7. Washing control: to enter water 2~8L/min automatically.

8. Replenishment: 50~500ml/sq.m.each time (automatically and manually)

9. Power:200V/50Hz/8.8A 2000W

Unit packing size: 1050*720*1230(mm)

Pcs/Carton: 1pcs

G.W:120KG

X-ray accessories:

Full body radiation protective suit | Radiation proof suit - MSLLS01

X-ray lead gloves | Nuclear gloves - MSLRS04



Lead leg pads | X ray foot guard - MSLRS02



 Cheap X-ray lead glasses for sale - MSLLG02

Hospital or medical rubber sheet - MSLLR01

 4 Casters X-ray lead screen - MSLLD02

Discount Medical x-ray film with CE for sale - MSLMF01

Developing solution | Film developing liquid - MSLDS01



Green sensitive x ray film with CE for sale - MSLMF02

X ray lead glass | X ray protection glass - MSLLG01

Lead free apron | x-ray protection clothing - MSLLA01

X-ray intensifying screen - MSLMF04

X ray lead protective aprons-MSLLA04

Lead foil sheet or rolled lead sheet - MSLLS02

X-ray film cassette - MSLMF03
