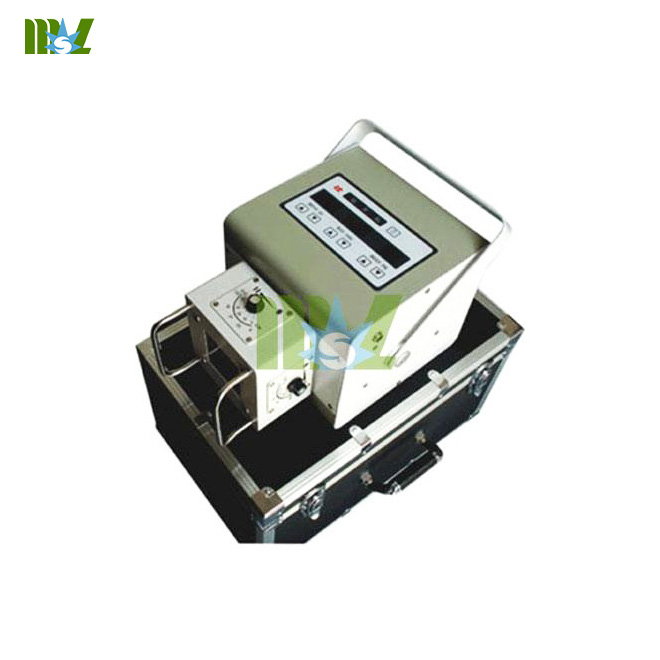

2.4KW Fluoroscopy x-ray machine - MSLPX04

1.Portable x-ray machine

2.Handheld x-ray machine

3.High frequency X-ray machine

《The introdution of x-ray machine》- Have you ever heard of the story about the discovery of X-ray? How was X-ray discovered? Could you figure out some uses of X-ray machine?...

Features:

 Max. Photograph x-ray tube (What is an x-ray tube? The construction of x-ray tube) voltage: 100kV/24mA

 Max. Photograph x-ray tube current: 60mA

 Max. Output: 2.4kW

 Exposal time: 0.008s ~ 3.33s

 MAS scope: 0.5mAs ~ 160mAs with 46 alternations

 Voltage scope: 40~100kV 2kV with 31 alternations

 Main frequency: 30kHz

 Max. light field: ≤35CMX35CM @65CM SID

 Min. light field: ≤5CMX5CM @100CM SID

 Focus size: 1.5mm

 Power: 220V ± 10% single phase alternating current with the frequency of 50Hz ± 1Hz

 Resistance: ≤ 1.0 Ω

 Power capability: ≥ 3.5kVA

 Electricity protection type: Class I, Type B

 Weight: 18.6kg

2.4KW Fluoroscopy x-ray machine - MSLPX04

1.Integrated with high frequency and high voltage generator, main control system, intelligent computer system, numeric display and beam limited device, it is designed and manufactured precisely and compactly, more flexibly and widely used.

2.Using the technique of inverse converter for HF and computer-controlled closed-loop adjusting System, stable high voltage output is generated and high-quality images can be obtained.

3.Using the buttons of KV and mAs to adjust the photographic parameters, display them on high-brightness LEDs, interlock protection conditions is determined by software, which is convenient for doctors to operate.

4.X-ray Tube is placed in lead cylinder which can effectively shield the gamma leakage and protect environment and operators safety.

5.20 radiographic conditions are preset and can be customized according to user requirements.

6.Photography Time is controlled precisely by computer, host will automatically delay 10 seconds at the end of photography which can effectively control photography interval, avoid overloading and achieve automatic protection.

7.Hand-controlled and remote-controlled photography function.

8.Using computer to monitor fault sources, the computer will cut all outputs, display fault code and identify the fault reasons if a fault appears.

9.Suitable for all kinds of cassettes.

Structural performance:

1.Radiography can be launched after X-ray apparatus is suspended on the frame.

2.The fuselage of X-ray apparatus is suspended on the frame, can rotate left and right at larger than or equal to ±90°, X-ray tube head can rotate at 90°which is easy to project in different angles.

3.The arm can move up and down, has Servo-balance and lock-up device.

4.The fuselage of X-ray apparatus weighs 19Kg, is more convenient to carry. The frame weighs 23 Kg, is more flexible to move at different places.

5.The frame can be disassembled and folded quickly, then putted into trunk, which can make out-call more convenient.

Instruments container is an additional option.

use:
outgoing saveorthopaedics hospitalbasic level physicalhairdressing and reshapingICU wardemergency call
community medical treatmentrural area medical treatmentgeneral medical treatment.
