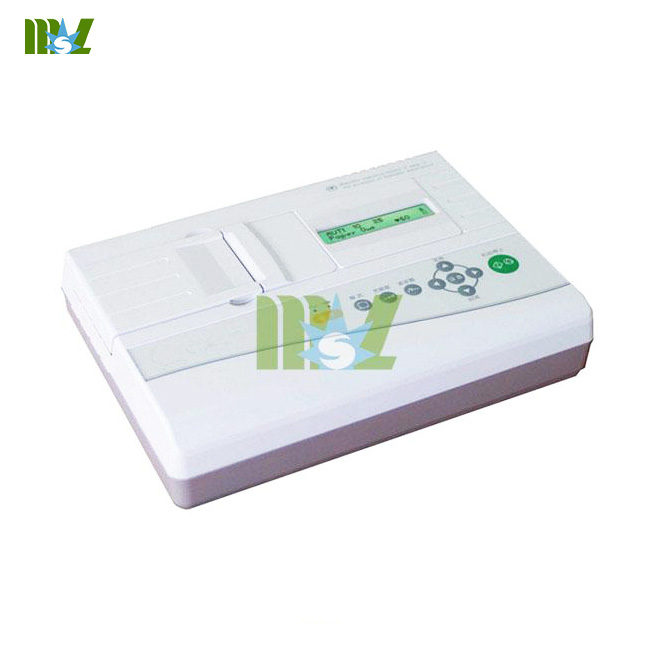

Product Name:  Digital single channel ecg machine - MSLPE03
Latest Price: US $ 280 - 500 / Set
Model No.:  280-500
Weight:   Kg
Minimum Order Quantity:  1 Set
Supply Ability:  1080 Sets per month
Payment Terms:  L/C, T/T, Western Union, MoneyGram, Paypal
Size:
Color:
QTY:
Shino Hu

Quick Details



Brand Name: MSL

Model Number: MSLPE03

Place of Origin: China (Mainland)

ECG Machine: Digital single channel

Packaging & Delivery



Packaging Details: carton.
Delivery Detail: within 8-15 workdays afte receipt of payment.


Specifications

  1. Digital ECG machine
  2. Single channel ECG machine
  3. Portable ECG machine



Dimension: 288mm*204mm*60mm

Packing:380mm*300mm*210mm

Weight:4.3kg(gross); 3.27kg(net)

Single channel with measurement report

Build in rechargeable Ni-MH battery

Chinese/English language

Simultaneous 12 leads

20X2 character LCD

Paper size: 50mmX20/30m

Built in RS232 interface (USB is optional)

                                                                                  Digital single channel ecg machine





Items Specification

Items

specification

Lead

standard 12 leads

lead acquisition

synchronously 12 leads

Data acquisition

18bit/1000Hz

Record mode

Manual mode; Auto 1; Auto 2; Auto 3

Filter

AC, EMG,Drift Filter

CMRR

100dB(with AC filter)

Input circuit

Floating; Protection circuit against Defibrillator effect

Input circuit current

≤0.1μA

Input Impedance

≥2.5MΩ

Patient current leakage

<10μA

Calibrating voltage

1mV±2%

Voltage Tolerance

±500mV

Time constant

>3.2s

Frequency response

0.05 ~150Hz

Noisy level

≤15μVp-p

Sensitivity valve

≤20μV

Inter-Channel Interference

≤0.5mm

Paper speed

25,50mm/s(±3%)

Sensitivity

AUTO,2.5,5,10,20mm/mV

Recording mode

Thermal Array printing

Paper specification

50mmx20m,roll

LCD display

20x2 character LCD,display status.

Safety classification

IEC60601-1 class I, type CF

Power supply

AC : 110V/220V/85~265V,50/60Hz±1Hz;30VA

DC :12V(1500mAh) rechargeable Ni-MH battery

Fuse

AC extend T500mA/125V     Φ5x20mm

AC extend T250mA/250V     Φ5x20mm

AC extend T2.0A/250V         Φ5x20mm
