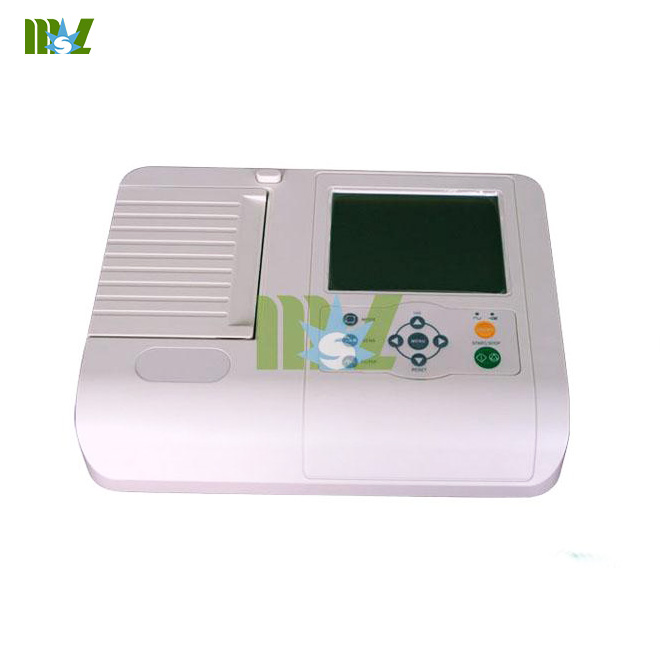

Product Name:  medical 6 channel ecg machine for sale-MSLEC12
Latest Price: US $ 500-1000/ Set
Model No.:  500-1000
Weight:   Kg
Minimum Order Quantity:  1 Set
Supply Ability:  1300 Sets per month
Payment Terms:  L/C, D/A, D/P, T/T, Western Union, MoneyGram, PayPal
Size:
Color:
QTY:
Shino Hu

Quick Details

TYPE: medical 6 channel ecg machine for sale

BRAND NAME: MSL

MODEL NUMBER: MSLEC12

PLACE OF ORIGIN: CHINA  (Mainland)

Packaging & Delivery

Packaging detail : standard export package

Delivery detail: within 7-10 workdays after receipt of payment

Specifications



medical 6 channel ecg machine for sale-MSLEC12

1.six channel with interpretive;
2.simultaneous 12 leads;
3.paper size: 112mm*20/30m.

Six channel with interpretive

Build in rechargeable Li battery

Chinese/English language

Simultaneous 12 leads

320X240 graphic LCD, 5.7 inch screen

Paper size: 112mmX20/30m

Built in RS232 interface (USB is optional)

128 patients save/copy/communication



medical ecg machine

ecg for sale



Items

specification

Lead

standard 12 leads

lead acquisition

synchronously 12 leads

Data acquisition

18bit/1000Hz

Record mode

Manual mode; AUTO1; AUTO2; AUTO3

Filter

AC, EMG, Drift Fliter

CMRR

≥100dB(with AC filter)

Input circuit

Floating; Protection circuit against Defibrillator effect

Input circuit current

≤0.1μA

Input Impedance

≥2.5MΩ

Patient current leakage

<10μA

Calibrating voltage

1mV±2%

Voltage tolerance

±500mV

Time constant

>3.2s

Frequency response

0.05 ~150Hz

Noise level

≤15μVp-p

Sensitivity valve

≤20μV

Inter-Channel Interference

≤0.5mm

Paper speed

25, 50mm/s(±3%)

Sensitivity

AUTO, 2.5, 5, 10, 20mm/mV

Recording mode

Thermal Array printing

Paper specification

112mmx30m, roll

LCD display

320x240 graphic LCD, display status&waveform.

Safety classification

IEC60601-1 class I, type CF

Power supply

AC : 110V/220V/110~230V, 50/60Hz±1Hz; 40VA

DC : 14.4V(2000mAh) rechargeable Li-ion battery

Fuse

AC extend T500mA/125V φ5x20mm
AC extend T400mA/250V φ5x20mm
AC extend T2.0A/250V φ5x20mm
