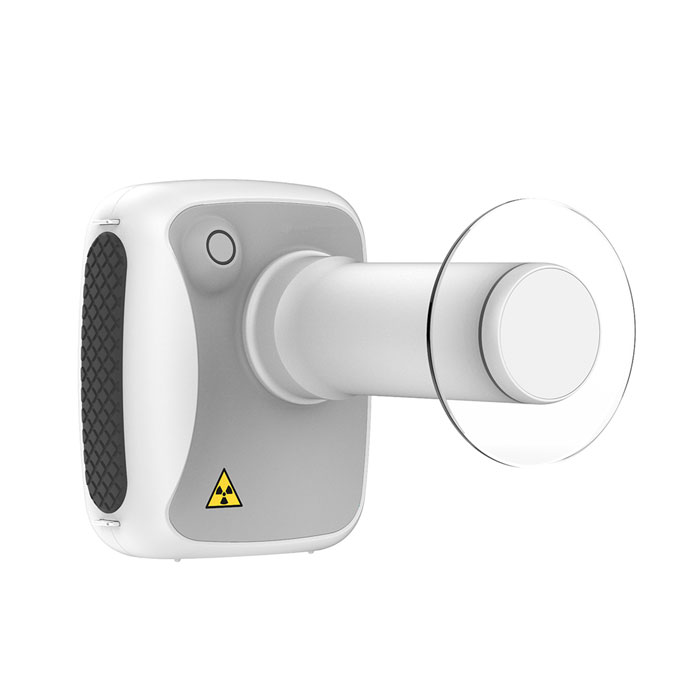

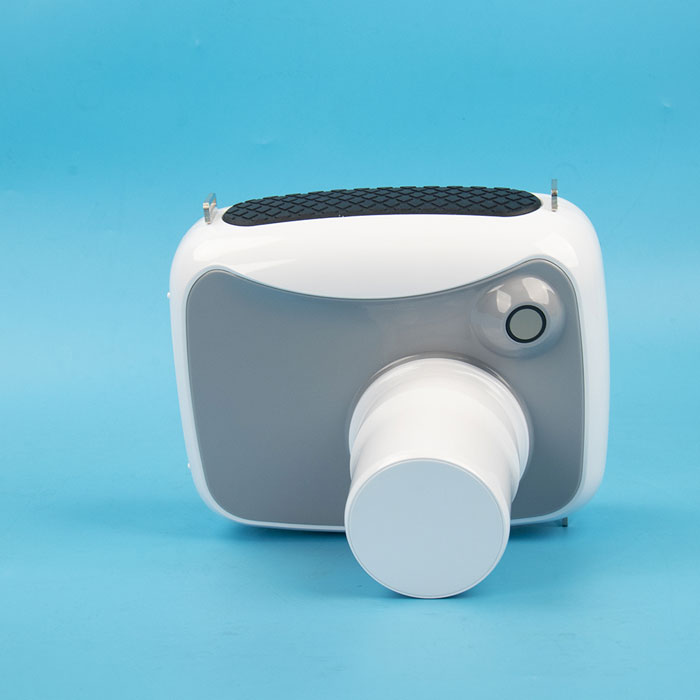

MSLHDX06 Portable Dental X‑ray System

Complete Technical Specifications

MSLHDX06 Basic Product Information

Model: MSLHDX06 Product Name: Portable Dental X‑ray System Intended Application: This portable dental x‑ray system is designed for intra‑oral dental radiography in dental clinics, compatible with both digital sensors and traditional dental film for clinical diagnosis. Designed Service Life: 5 years Operation Mode: Discontinuous operation；Max excitation ON time vs Min excitation OFF time = 1:30

X‑ray Output & Generator Performance

Nominal Power: 0.12 kW (60kV, 2mA, 0.1s) Maximum Load Combination: 60 kV, 2 mA, 2 s High‑Frequency Inverter Frequency: 70 kHz for this high‑frequency dental x‑ray machine Tube Voltage: 60 kV DC Tube Current: 2 mA Exposure Time Adjustment Range: 0.01‑2.00 s, adjustable following R10 series Focal‑to‑Skin Distance: 211 mm ±3 mm (long); 109 mm ±3 mm (short) X‑ray Field Size: Φ56 mm ±3 mm at beam limiting tube outlet

X‑ray Tube Assembly Parameters

X‑ray Tube Model: XD10D‑0.5/70 Nominal Focal Spot: 0.8 mm Target Material: Tungsten Anode Target Angle: 19° Inherent Filtration: 0.75 mm Al Additional Filtration: 1.00 mm Al Total Filtration: ＞2.5 mm Al Half‑Value Layer: ≥1.5 mm Al (60 kV)

Radiation Safety Specifications

Leakage Radiation: ≤0.25 mGy/h (60kV, 2mA, 2s), this low‑dose dental radiography equipment meets international radiation safety standards Radiation Output Repeatability: ≤ ±0.5 deviation

Battery & Power Adapter Parameters

Built‑in Rechargeable Lithium‑ion Battery: 950 mAh, DC 25.2 V Approximate Exposures per Full Charge: Around 150 exposures Power Adapter Input: Single‑phase AC 100‑240 V, 50/60 Hz, 286 W Power Adapter Output: DC 25.2 V, 1.0 A, 25.2 W

Note: Exposure function is disabled automatically while charging.

Physical & Operating Control

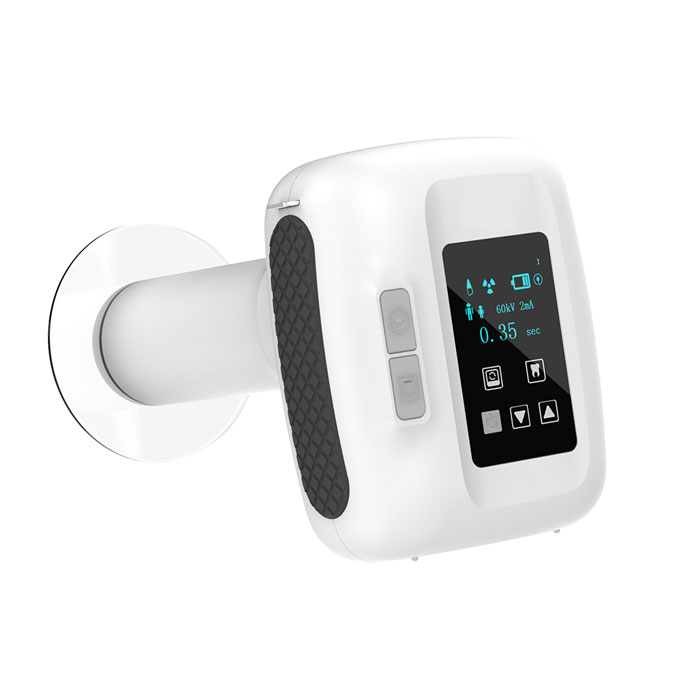

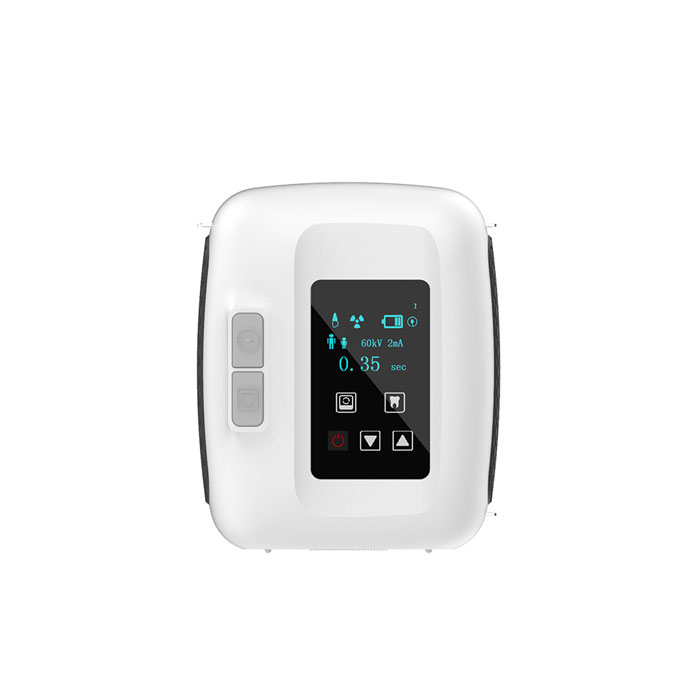

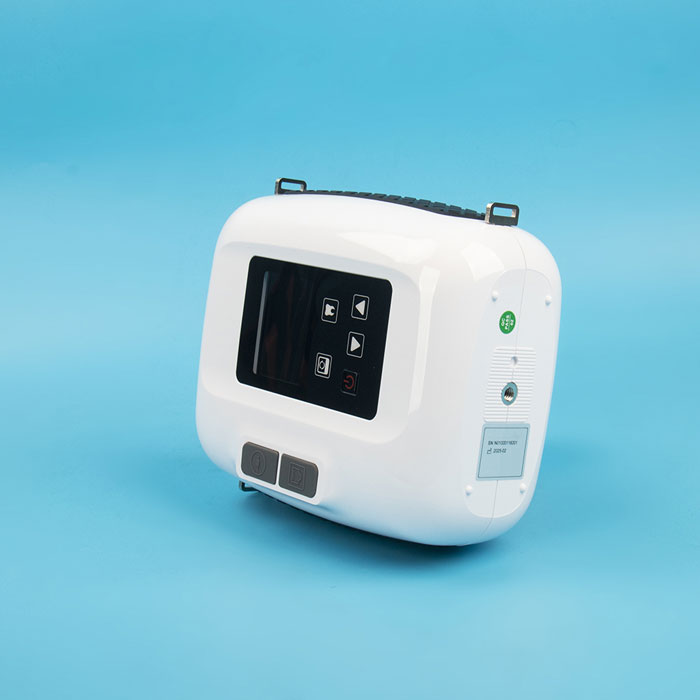

Net Unit Weight: 1.9 kg, lightweight for one‑hand operation Accessories: Hand strap, neck strap, exposure switch Operation Interface: Physical keypad, supports patient type & tooth‑type preset exposure parameters

Working, Storage & Transport Environment

Working Condition: Temperature 10℃‑40℃; Humidity 30%‑75%; Atmospheric pressure 700‑1060 hPa; Altitude ≤2000 m Storage & Transportation: Temperature ‑20℃‑55℃; Humidity 20%‑80%; Atmospheric pressure 70‑106 kPa

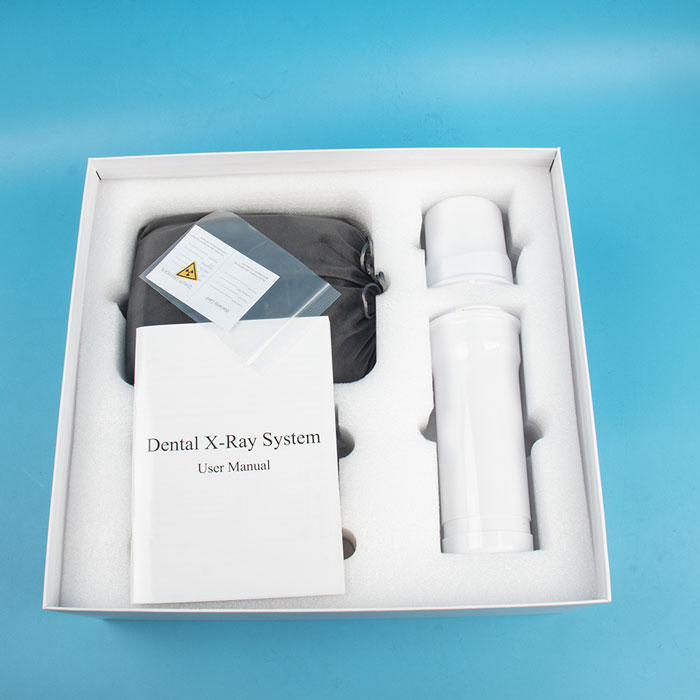

Standard Packing List

1 × MSLHDX06 Main Unit 1 × Power Adapter 1 × Power Cable 1 × Hand Strap 1 × Neck Strap 1 × Exposure Switch

Product Key Highlights

The MSLHDX06 portable dental x‑ray system is a lightweight battery‑powered intra‑oral x‑ray unit for dental clinics. It adopts 70 kHz high‑frequency tech with stable 60kV, 2mA output, supporting around 150 exposures on one full charge. Weighing only 1.9 kg, this low‑dose dental radiography equipment works with digital sensors and film, featuring strict leakage‑radiation control for safe chair‑side intra‑oral dental diagnostic imaging.
