Product Description
MSLHX43

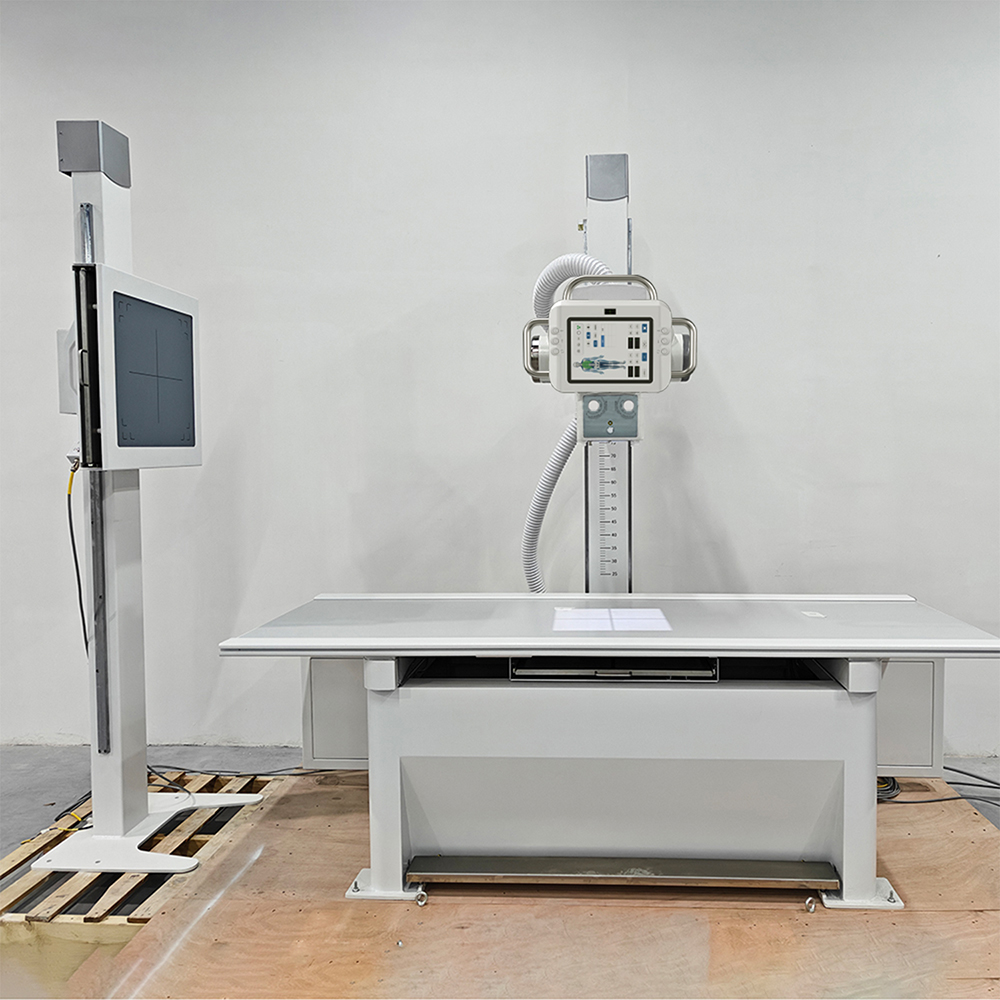

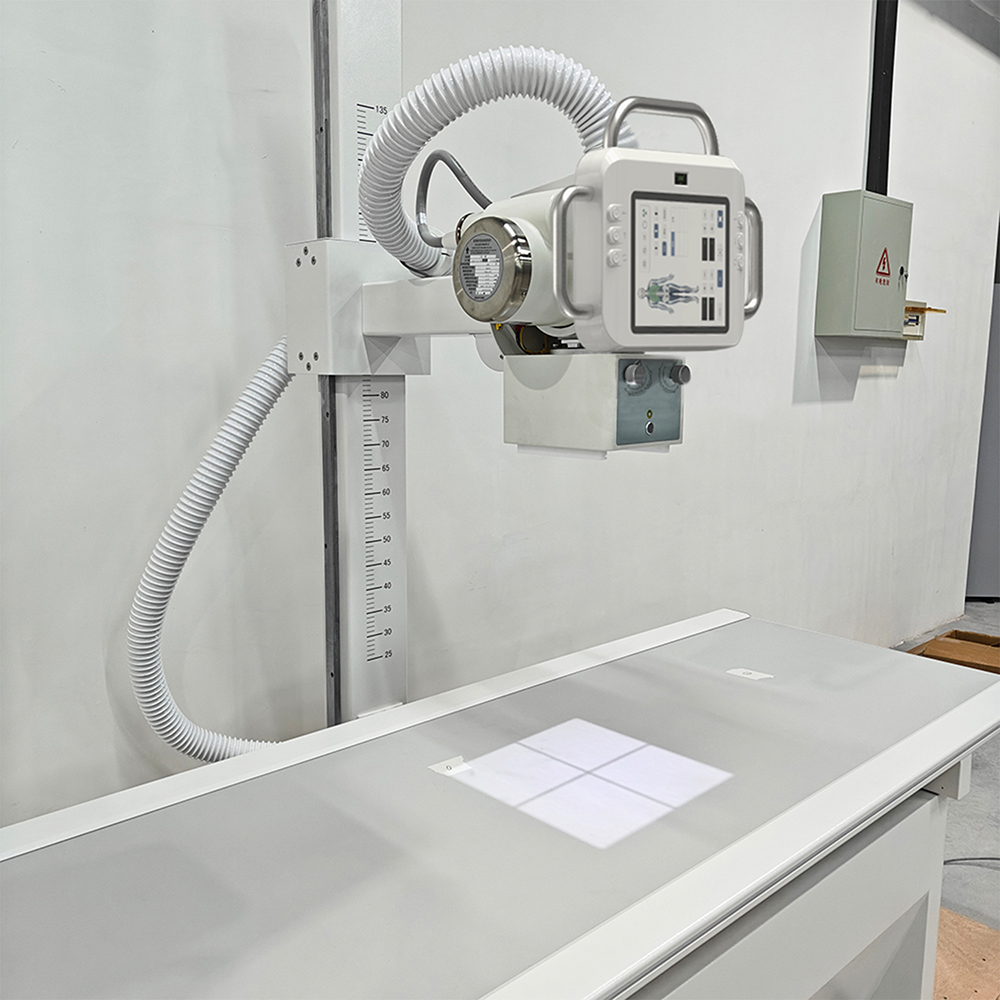

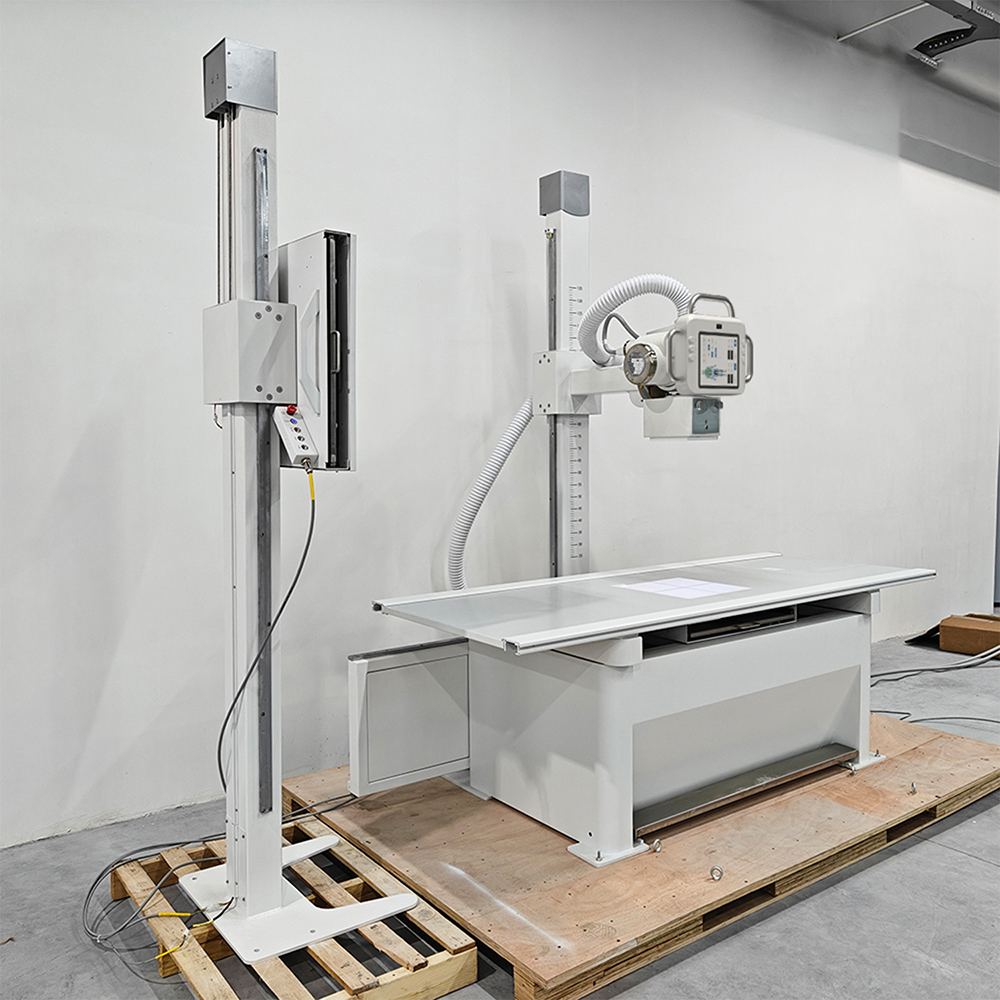

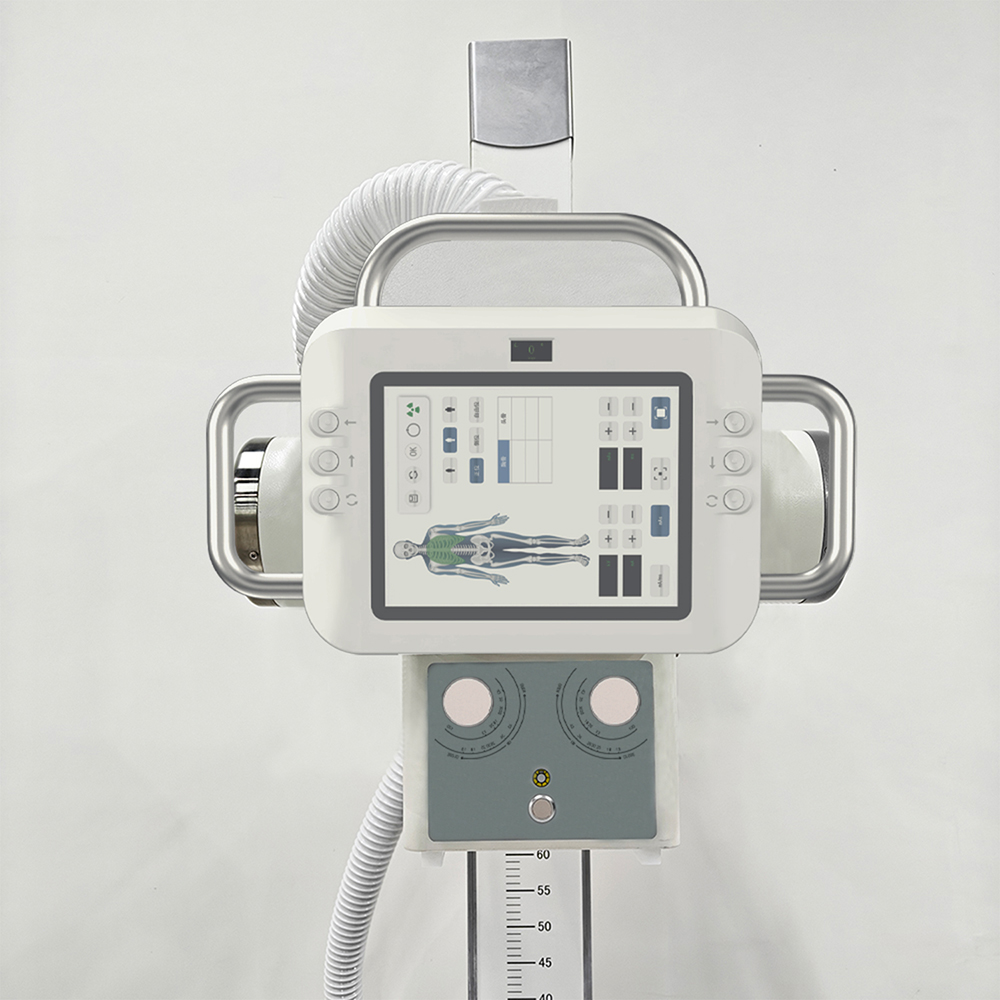

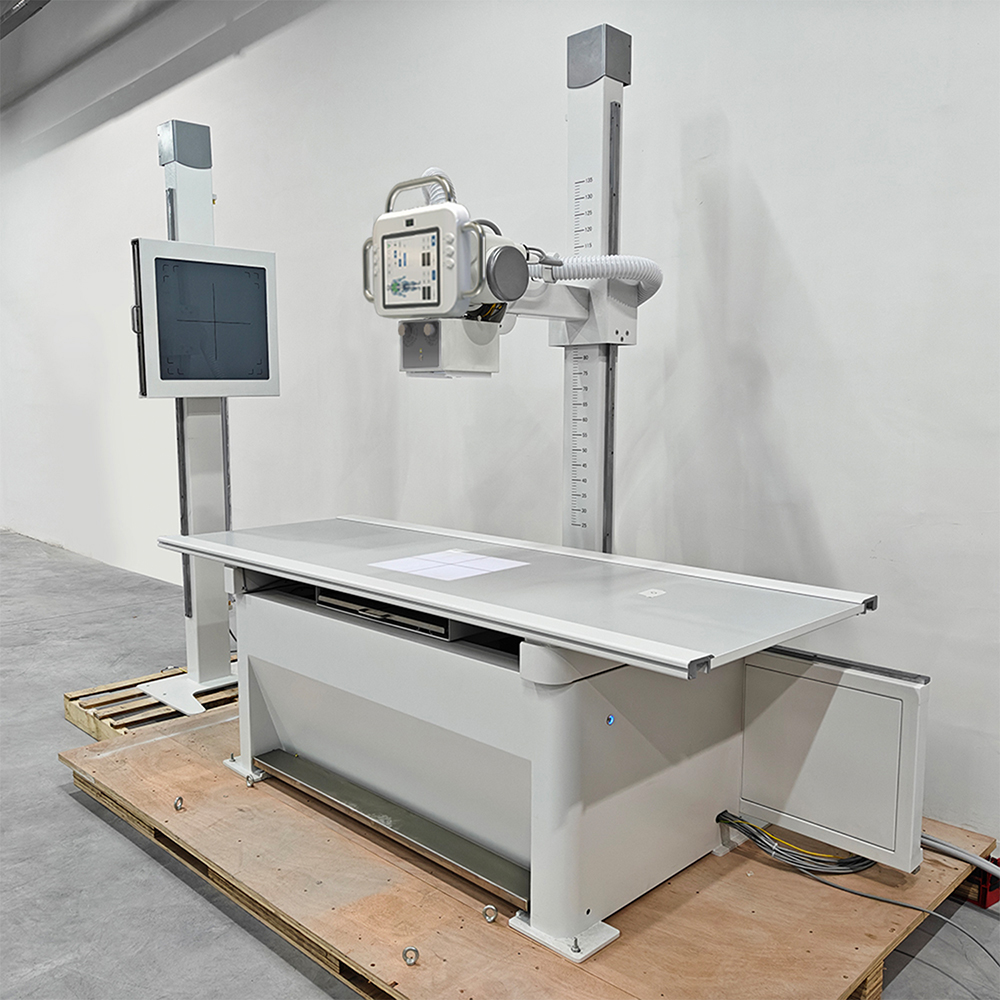

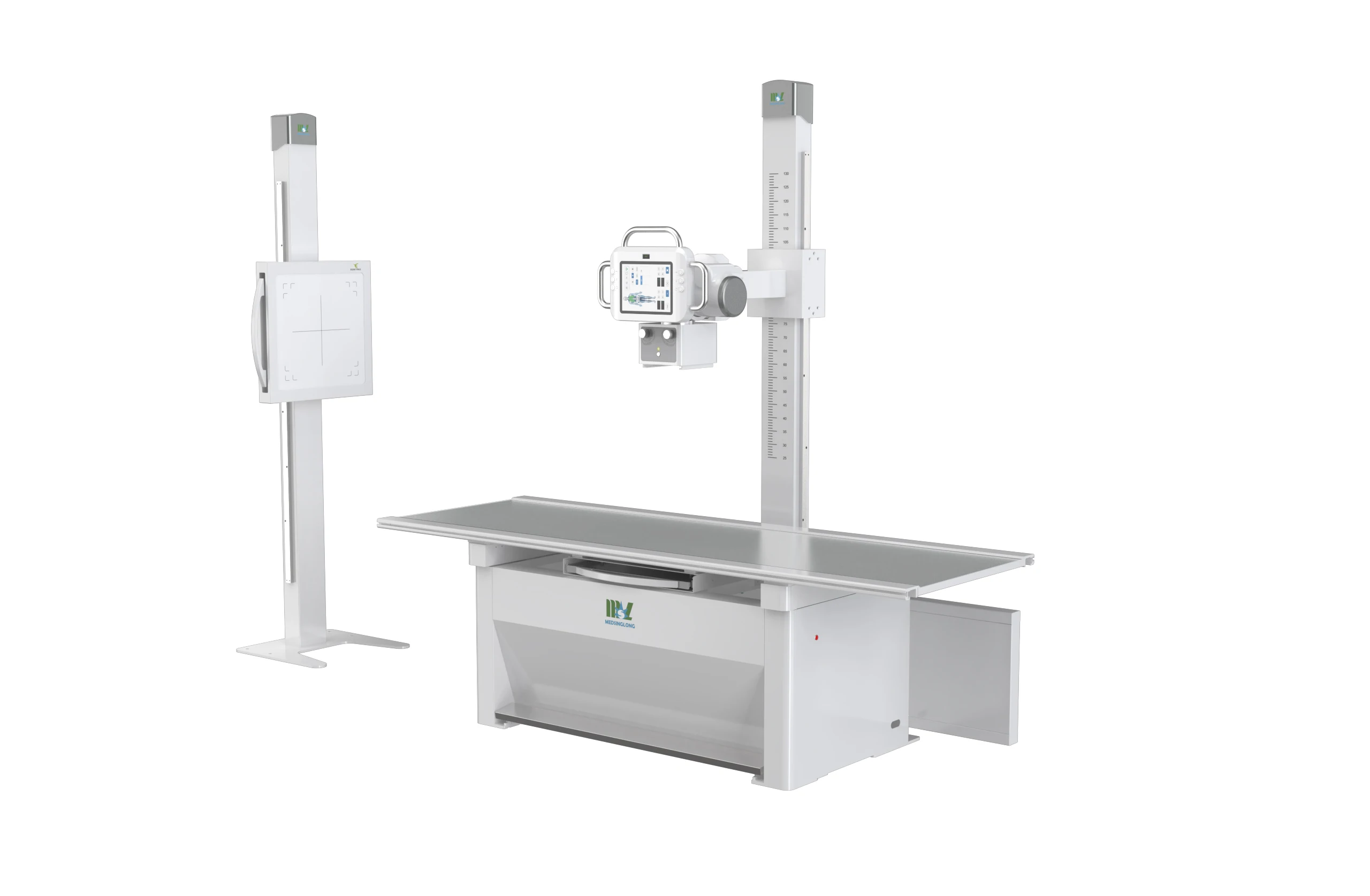

A set of DR High Frequency x-ray machine three-phase 380V standard flat panel detector
Specs and Details Images

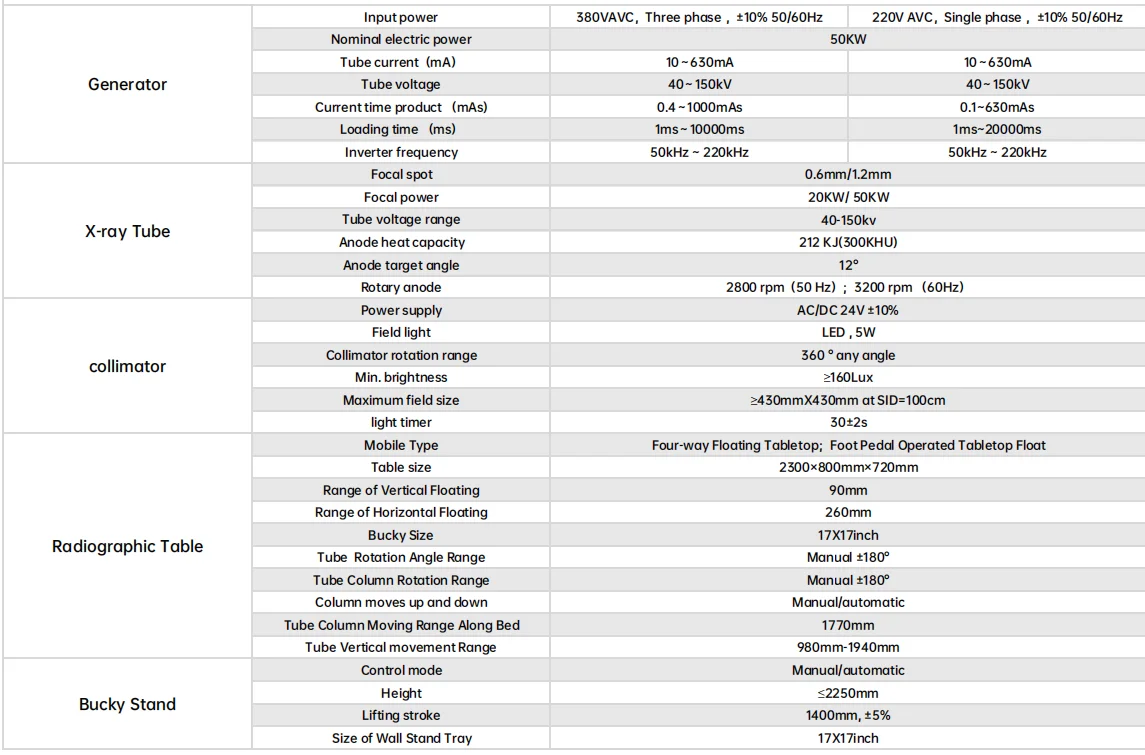

| NO. |
technical requirements |
| 1 |
high frequency and pressure X ray generator for medical diagnostic use |
| 1.1 |
input power: 380V±38V，50Hz±1Hz。 |
| 1.2 |
maximum power output :50 kW |
| 1.3 |
Photography tube voltage:it can be adjusted continuously, adjustable step width is 1KV,adjustable range: 40kV～150kV |
| 1.4 |
photography tube current:it can be adjusted by sections. Adjustable range: 10mA～630mA |
| 1.5 |
load time: adjustable range: 0.001-10sec |
| 1.6 |
current can be adjusted by sections. Adjustable range: 0.1mAs～500mAs |
| 1.7 |
working frequency: 100kHz |
| 2 |
X ray tube |
| 2.1 |
：highest peak tube voltage: 125kV |
| 2.2 |
maximum filament current’s heat characteristic: big focus:5.4A, small focus:5.4A. |
| 2.3 |
focus: small focus:0.6mm;big focus:2.0mm |
| 2.4 |
Anode input power:small focus:18kw;big focus:50kw |
| 2.5 |
Anode optics angle: 14 |
| 2.6 |
rotate speed of Anode: 2800rmb |
| 2.7 |
Anode thermal capacity: 160kJ (220kHU) |
| 2.8 |
tube module thermal capacity: 1250KHU(900KJ) |
| 3 |
Filming bed |
| 3.1 |
length: 2200mm±10% |
| 3.2 |
width: 750mm±10% |
| 3.3 |
lengthways moving range of bed surface: 1000mm±10% |
| 3.4 |
crosswise moving range of bed surface: 250mm±10% |
| 3.5 |
bed surface locking pattern: electromagnetic lock(permanent magnet) |
| 3.6 |
bed surface locking control: foot switch |
| 3.7 |
breaking force: ≥100N |
| 3.8 |
starting force:≤50N |
| 3.9 |
load bearing of bed panel: ≥150kg |
| 4 |
stand column |
| 4.1 |
height: 1920mm±10% |
| 4.2 |
up-and-down moving range: 420mm-1810mm±10% |
| 4.3 |
up-and-down moving range along the lathe bed: 2000mm±50mm |
| 4.4 |
vertical lift range along the lathe bed: 430mm-1660mm±10% |
| 4.5 |
left and right moving range of flat panel detector : 350mm±5% |
| 4.6 |
X ray tube module’s slewing range around the cross arm（power brake locking): 360° |
| 4.7 |
X ray tube slewing range: 0° ±2° ～ ±90° ±2° |
| 4.8 |
stand column slewing range: fixed |
| 5 |
beam-defining clipper |
| 5.1 |
power supply: 24VAC,7A |
| 5.2 |
inherent filtration : 2.0mmAL/75KVp |
| 5.3 |
it is easy to turn on and off, flexible and reliable. It makes different sizes of rectangles exposure field in accordance withvarious requirements in practice. |
| 6 |
others |
| 6.1 |
high voltage cable:≥8m |
