MSLEK04 Veterinary High Frequency Electrosurgical Unit — Full Parameter List (For Website Product Page)

electrosurgical unit, high frequency ESU, veterinary electrosurgical generator, monopolar & bipolar, surgical cutting coagulation, veterinary electrode, MEDSINGLONG MSLEK04

1. Basic Product Info

• Model: MSLEK04
• Manufacturer: MEDSINGLONG CO LTD
• Product Type: Intelligent High Frequency Electrosurgical Generator (Diathermy Machine)
• Exclusive Use: Veterinary surgical operations only
• Core Edge: 10% lower price than rival devices with identical full configuration

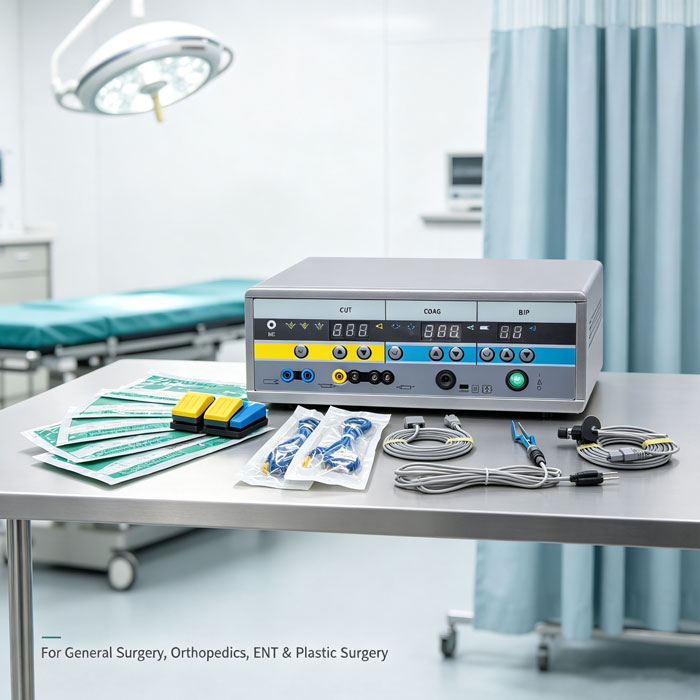

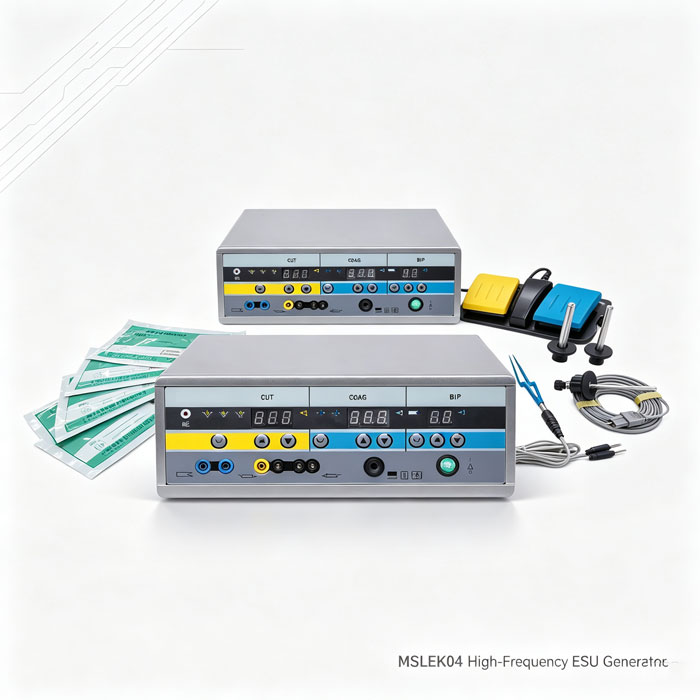

MSLEK04 Main Unit

2. Working Frequency & Power Supply

• Operating Frequency: 530 KHz
• Input Power Range: 100–240V / 50–60Hz universal global voltage
• Digital triple LED display for real-time power reading of CUT, COAG, BIP modes

3. Multi Working Modes & Output Power (Standard Load: 300Ω for monopolar, 100Ω for bipolar)

1. Pure Cut: Max 400W
2. Blend 1 Cut: Max 250W
3. Blend 2 Cut: Max 150W
4. Coag 1: Max 120W
5. Coag 2: Max 100W
6. Bipolar Coagulation: Max 70W Covers all cutting & hemostasis demands for large/small animal veterinary surgery.

4. Dual Control Operation Modes

• Manual panel control: Physical up/down adjustment buttons for precise power tuning
• Foot switch control: Hands-free operation to free surgeon’s hands during procedures Dual control design optimizes workflow in busy veterinary operating rooms.

5. Leakage Current Safety Index (Low Frequency Leakage)

• Normal Polarity, Intact Chassis Ground: ＜10μA
• Normal Polarity, Ground Open: ＜50μA
• Reverse Polarity, Ground Open: ＜50μA
• Sink Current (140V applied, all input): ＜50μA Ultra-low leakage ensures safe electrosurgery and avoids animal tissue burn risk.

6. Intelligent Self-Test & Error Alarm System

• Built-in Power-On-Self-Test (POST) routine after startup
• Audible & visual error prompt for abnormal ground connection, electrode disconnection or circuit faults Timely fault reminder reduces hidden risks in veterinary clinical use.

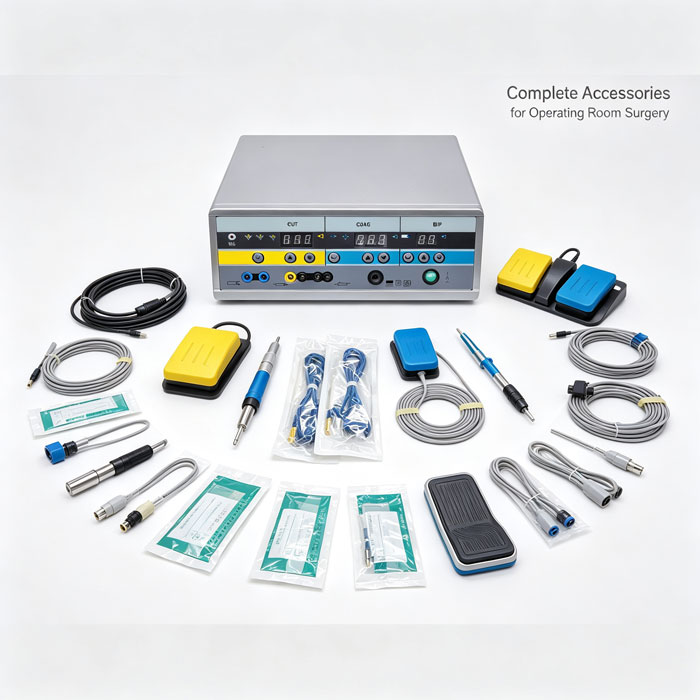

7. Matching Veterinary Electrodes & Supporting Accessories

• 3-size professional veterinary electrodes: Large / Medium / Small for all animal body sizes
• Eliminates pre-op shaving & tedious skin preparation to streamline surgical process

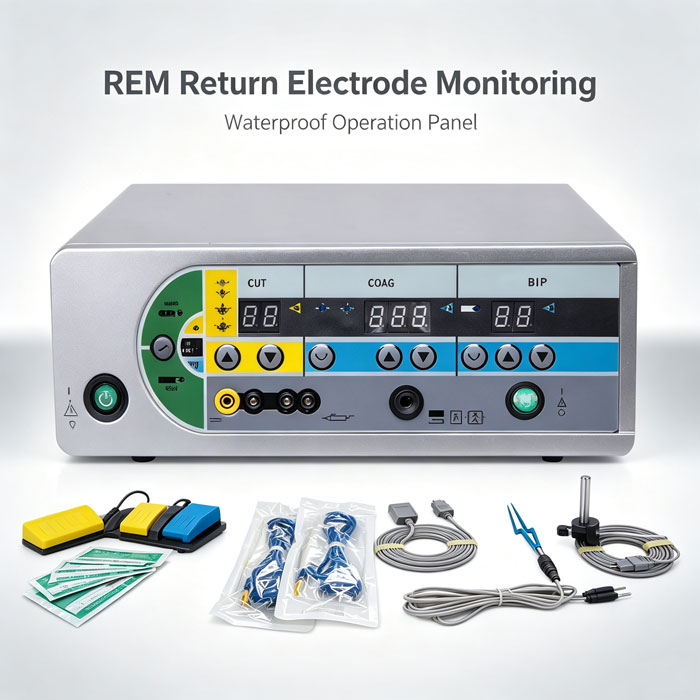

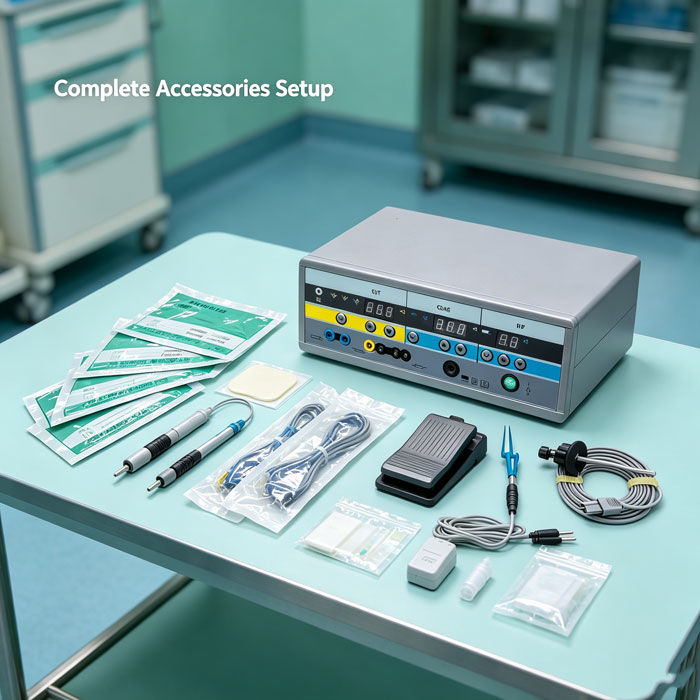

• Compatible accessories: Multi-spec foot switches, reusable/disposable electrosurgical pencils, reusable bipolar forceps, bipolar forceps connecting cables, reusable neutral electrode pads (HIFI / REM connector types)

8. Core Functional Advantages

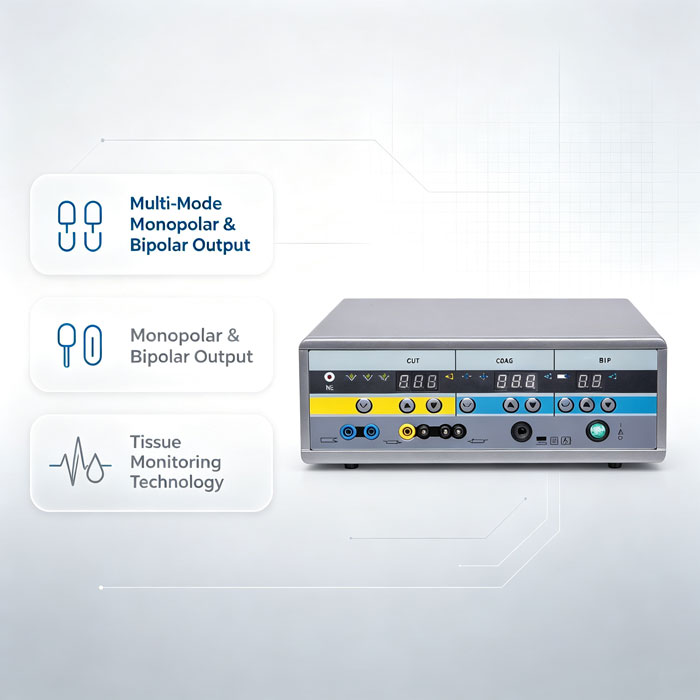

1. Integrated monopolar + bipolar dual output to fulfill full veterinary surgery scenarios
2. Stable cutting & rapid hemostasis effect, low tissue trauma
3. Intuitive human-machine panel layout for easy setup & quick learning
4. High-quality internal components with strict screening for long stable service life
5. Floating output design complying with global medical safety standards

9. Compatibility & Expansion

• Supports connection with auxiliary smoke evacuation system for cleaner surgical vision
• Compatible with mainstream veterinary medical equipment for integrated operating room layout

100-Word Core Product Summary (Website Front Description)

MSLEK04 high frequency veterinary electrosurgical unit delivers full 400W multi-mode monopolar and bipolar output at a price 10% cheaper than same-spec competitors. Running at 530KHz with ultra-low leakage current, this intelligent ESU features dual manual/foot control, power self-test and fault alerts for full clinical safety. Equipped with 3-size veterinary electrodes and rich matching accessories, it skips complex pre-surgery skin prep and achieves clean cutting & fast hemostasis for all large and small animal surgeries, ideal for veterinary clinics and animal hospitals worldwide.

Reusable ESU Pad for Electrosurgical Unit

Compatible with electrosurgical generator, radio frequency generator and other high frequency equipment.

The material is non-cytotoxic, without stimulus and sensitivity.

Neutral electrode cable : 3m

Disposable ESU Plate for Adult

Excellent adhesive and conductance.

Compatible with electrosurgical generator, radio frequency generator and other high frequency equipment.

The material is non-cytotoxic, without stimulus and sensitivity.

Best Durable Disposable Grouding Pads for Adult

Excellent adhesive and conductance.

Compatible with electrosurgical generator, radio frequency generator and other high frequency equipment.

The material is non-cytotoxic, without stimulus and sensitivity.

ESU Neutral Plate Cable

Compatible with electrosurgical generator, radio frequency generator and other high frequency unit.

Patient Plate cable : 3m.

ESU Bipolar Forceps

High precision, tissue preserving preparation instrument

Stainless steel , Titanium, and Non-stick

Stronger tension of the forceps allows for tissue spreading and dissection

A variety of patterns, lengths and tip size: Straight/ Bayonet forceps

Specialty forceps available for specific electrosurgery needs

Total Length:110mm/195mm/220mm for choice

Tap Connector: Europe Standard /America Standard/ Aesculap Standard

Different Color: Black/Blue/Yellow/Gray

Single Pedal Footswitch for Medical Equipment

Comfortable design and light weight.

Single pedal /double pedal control.

Compatible with ERBE/Vallylab/Martin and other brand electrosurgery unit.

The material of pedal is ABS.

Length of cable : 3m.

High End Double Pedal Electrosurgical Unit Footswitch

Comfortable design and light weight.

Single pedal /double pedal control.

Compatible with ERBE/Vallylab/Martin and other brand electrosurgery unit.

The material of pedal is ABS.

Length of cable : 3m.

Single Pedal Footswitch for Medical Equipment

Single pedal /double pedal control.

Compatible with ERBE/Vallylab/Martin and other brand electrosurgery unit.

The material of pedal is ABS.

Length of cable : 3m.

Waterproof ESU Footswitch for Surigical Instruments

Single pedal /double pedal control.

Compatible with ERBE/Vallylab/Martin and other brand electrosurgery unit.

The material of pedal is ABS.

Length of cable : 3m.

Reusable Hand Control Electrosurgical Pencil for Electrosurgical Unit

Hand control/foot Control color marked button

Hexagonal electrode connection

Length of cable : 3m

Banana connector(one-pin or three-pin)

Length of stainless steel blade : 24 cm

Length of ABS handle : 160mm

Function: cutting & coagulation

Reusable  Medical Supplies Electrosurgical Pencil

Hand control/foot Control color marked button

Hexagonal electrode connection

Length of cable : 3m

Banana connector(one-pin or three-pin)

Length of stainless steel blade : 24 cm

Length of ABS handle : 160mm

Hand Control Electrosurgical Pencil

Hand control/foot Control color marked button

Hexagonal electrode connection

Length of cable : 3m

Banana connector(one-pin or three-pin)

Length of stainless steel blade : 24 cm

Length of ABS handle : 160mm
