MSLDX20 is a high‑performance all‑in‑one dental CBCT integrating cone beam CT, digital panorama and cephalometric imaging. It supports flexible multi‑FOV scanning with adjustable voxel ranging from 0.07mm‑0.45mm, adopting HRPBR reconstruction and dedicated metal artifact removal algorithm to deliver high‑definition diagnostic images. This cone beam CT covers comprehensive clinical cases including implant planning, root canal treatment, TMJ assessment, impacted‑tooth and periapical cyst diagnosis. Built‑in software provides implant design, neural canal labeling and bone density analysis. Compliant with DICOM3.0 standard, it can connect with PACS system for efficient case management. CUDA high‑speed reconstruction optimizes workflow. Reliable remote‑diagnosis after‑sales service makes it suitable for private dental clinics and oral hospitals across Southeast Asia, Latin America and Africa.
Packaging & Delivery
Packaging detail:Standard export package
Delivery detail:within 7-10 workdays after receipt of payment
Specifications
MSLDX20 Dental CBCT Product Specification
Supported Imaging Modes
All‑in‑one multi‑modality scanner: Cone Beam CT, Digital Panorama, Cephalometric Imaging
Available scan types: Full CT, Partial CT, Model Scan
One‑key panoramic image reconstruction generated from 3D CBCT volume data
Suits implant, orthodontics, prosthodontics and endodontic diagnosis workflows
Field of View & Voxel Performance
CT FOV: 12×8 cm
Adjustable voxel size: 0.07 mm, 0.19 mm, 0.26 mm, 0.33 mm, 0.45 mm
Supports HD scanning, SD scanning and root‑canal dedicated scanning modes
Flexible FOV enables observation for TMJ, impacted tooth and periapical cyst cases
Exposure Time Parameters
Panorama exposure time: 17 s
CT total exposure time: 20 s (effective exposure: 8 s)
Intelligent Image Reconstruction Algorithms
HRPBR image reconstruction algorithm & WE image processing: produce high‑definition panoramic images
Dedicated metal artifact removal algorithm: reduce artifacts from metallic restorations
Intelligent de‑noise algorithm: lower image noise and distortion for clearer diagnosis
CUDA high‑speed image reconstruction for fast data processing

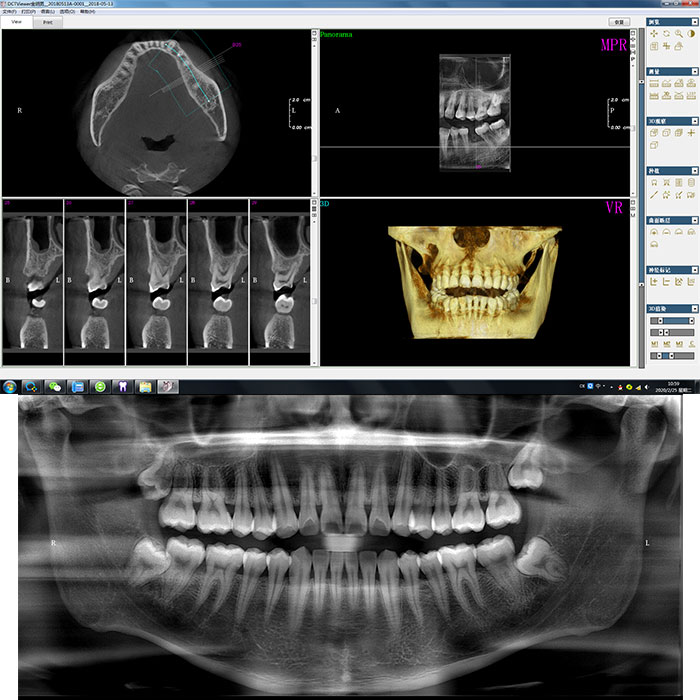

3D Diagnosis Software Functions
Complete image operation, measurement and 3D manipulation toolkit
Implant design, implant‑related data analysis and bone density evaluation
Automatic neural canal labeling for safe implant simulation
Panoramic reconstruction & 3D effect adjustment
Standard DICOM3.0 format, compatible with PACS system and multi‑workstation connection
Powerful case management system covering full records from diagnosis to post‑operation evaluation
Supports easy software upgrade and remote diagnosis for after‑sales service
