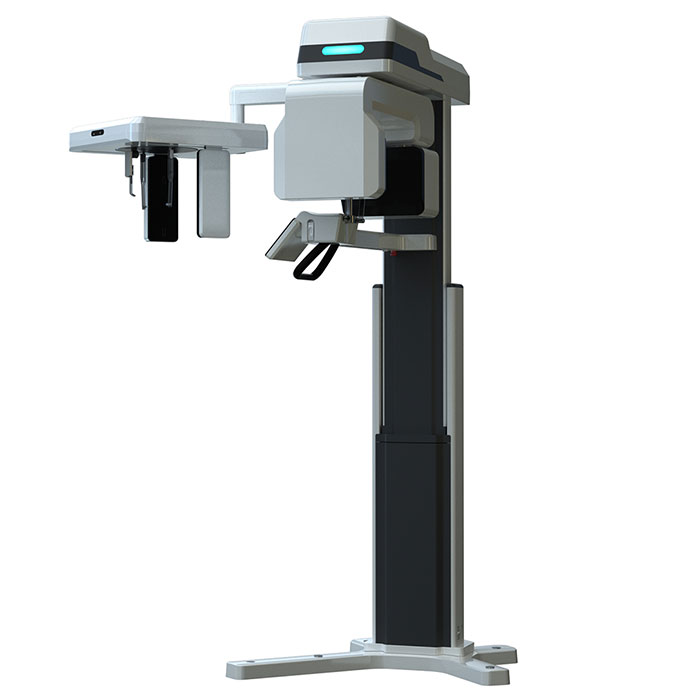

MSLDX22 Dental CBCT Product Specification

Quartz 4 Scan Platform & Scanning Modes

• Core platform: Quartz 4 scan platform, flexible multi‑mode scanning
• 360° rotation scan, generates up to 800 frame raw images
• Supported scan modalities: CBCT, PAN(Panoramic), CEPH

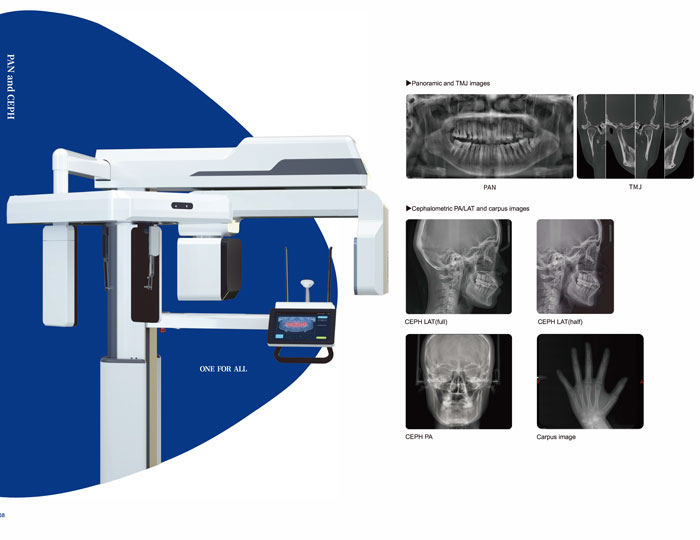

• CEPH supports PA / LAT projection and carpus shot for orthodontic workflow

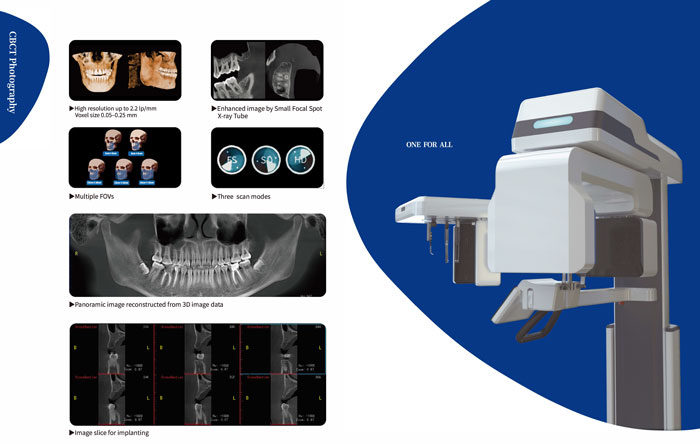

• Panoramic images reconstructed from 3D volume data; multi‑focus layers adapt to variable dental arch shapes

Field of View & Image Performance

• Multiple optional FOV: 12×10cm, 8×8cm, 5×8cm, 15×10cm, 16×10cm
• Voxel size: 0.05‑0.25 mm adjustable
• Spatial resolution: 2.2 lp/mm
• X‑ray tube: Small focal spot 0.5 (IEC 60336) for enhanced image quality
• Detector: CsI+ (CMOS/TFT)
• Reconstruction time: ＜60s

Exposure Parameters

• Tube Voltage (CT / PAN / CEPH): 60‑100 kV
• Tube Current (CT / PAN / CEPH): 2‑10 mA
• CT Exposure Time: 9.5 s / 12.5 s / 18.5 s
• PAN Exposure Time: 8.1 s / 18 s
• CEPH Exposure Time: 7.5 s / 10.1 s / 11.8 s

AI‑Driven Imaging Algorithms

• Deep‑learning CT reconstruction algorithm: Improve image definition and achieve AI low‑dose control
• T‑MAR AI metal artifact correction: Intelligently remove metal artifacts while preserving original clinical data
• AI auto‑focus & multilayer panoramic technology: Auto‑fit optimal panoramic curve
• Automatic neural tube labeling on CBCT images for implant planning

SmartVPro Diagnostic Software Features

• Multi‑modality image support for CT, PAN and CEPH
• Simulated implant function: Auto‑highlight neural tube, evaluate bone mass for implant surgery
• TMJ diagnosis: Bilateral temporomandibular joint comparison for disease assessment
• Airway measurement: Auto‑segment airway, calculate volume and narrow cross‑section
• Regional bone mineral density statistics
• 3D fine reconstruction for target‑of‑interest area
• Optional cloud storage: Multi‑terminal case storage and data synchronization

Optional CephPro3D Orthodontic Software

• VTO orthodontic effect simulation; image‑photo superimposition
• Built‑in 19 measurement methods, supports custom measurement items
• One‑click visual orthodontic report generation, patient privacy auto‑protection
• Clinical stage intelligent tracking, complies with ABO standards
• Optional AI CEPH measurement: Auto‑identify anatomical landmarks and output reports

Human‑Centered Hardware Design

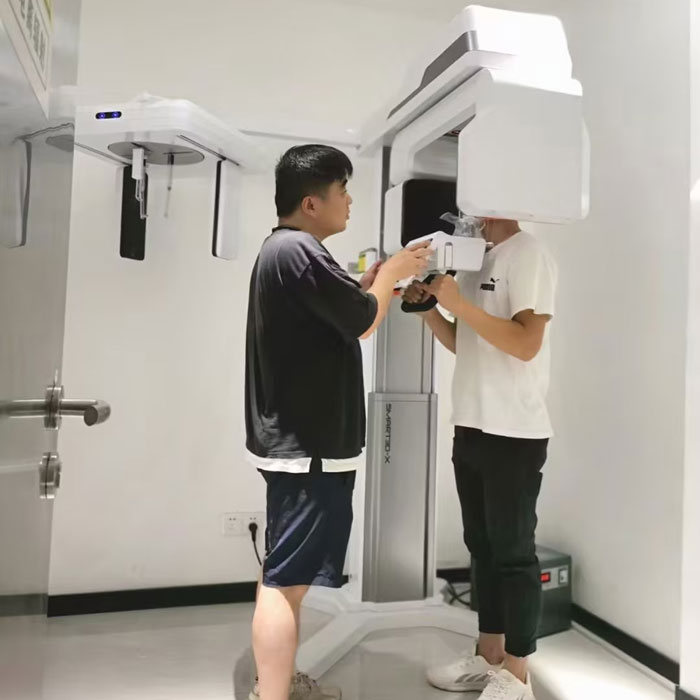

• Six positioning lasers for precise patient positioning
• X‑type base, friendly for wheelchair‑bound patients

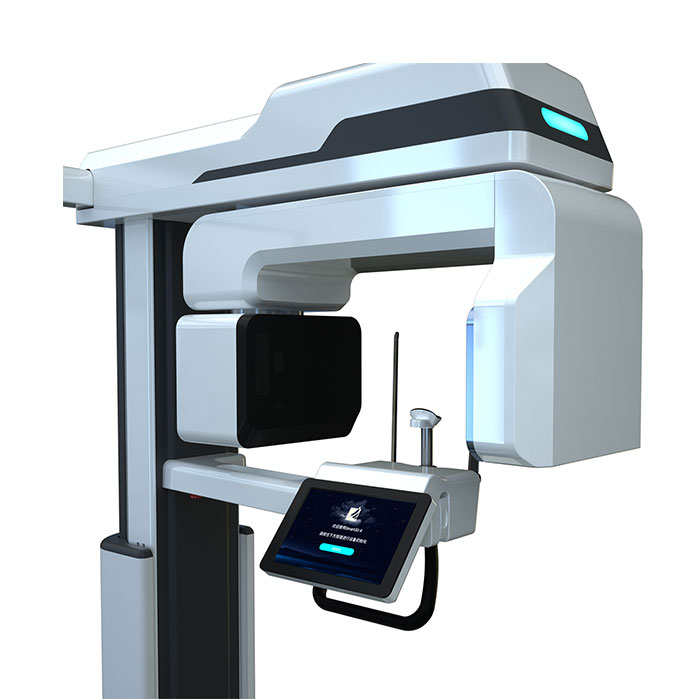

• 10‑inch LED touch screen
• Built‑in storage box; voice reminder function
