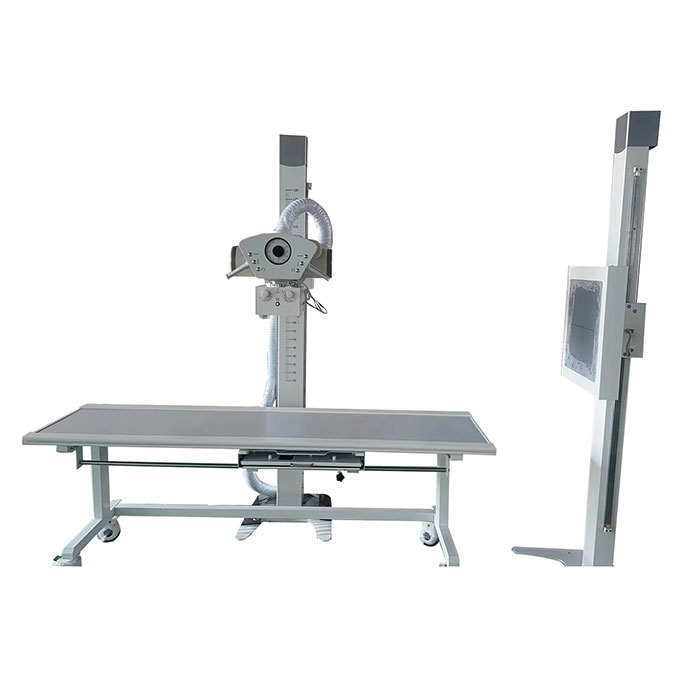

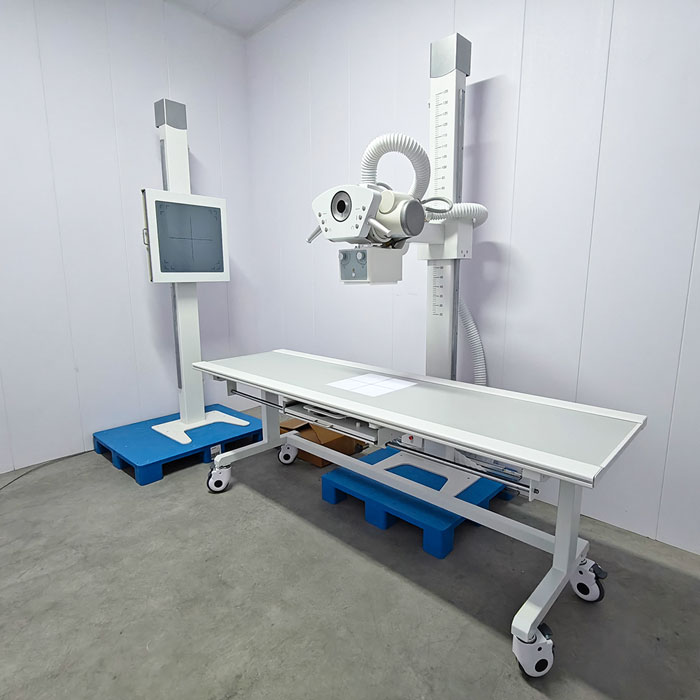

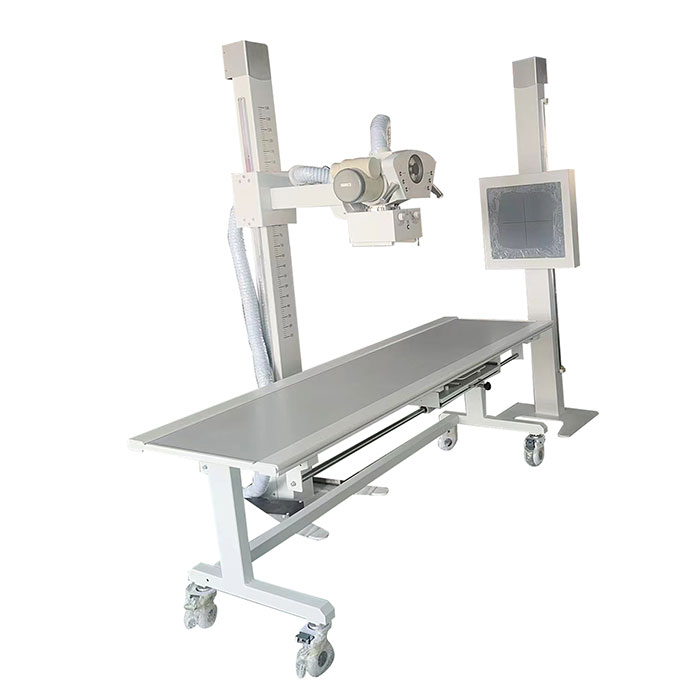

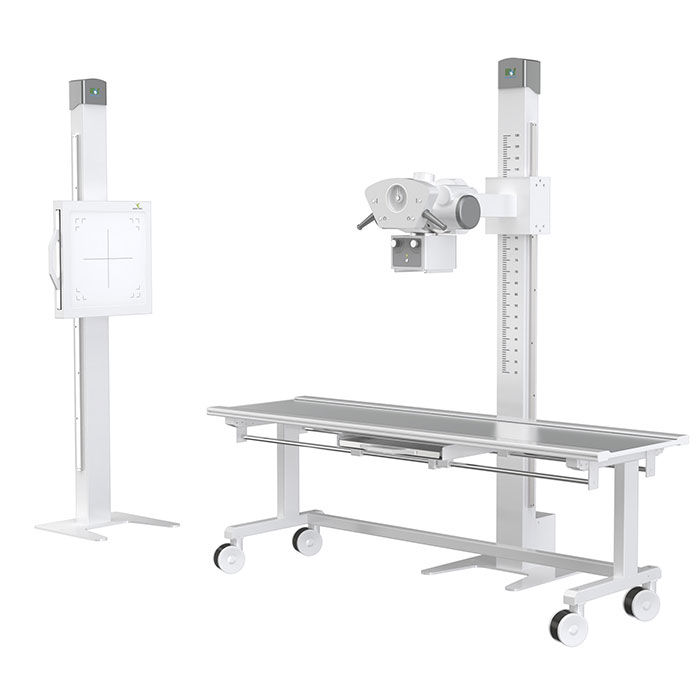

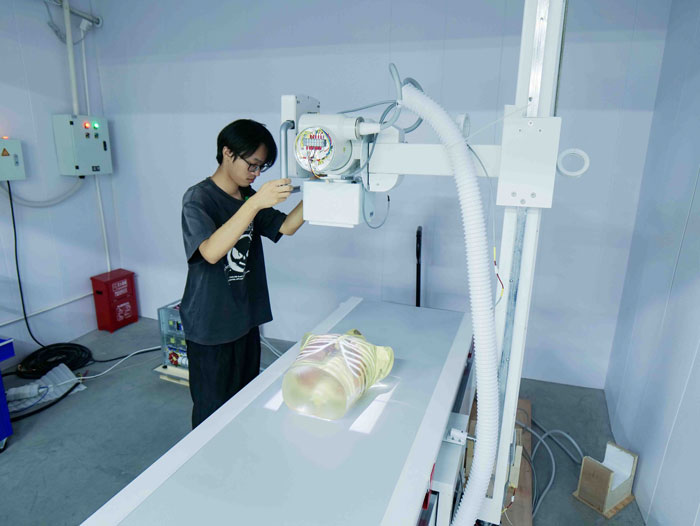

Product Specifications - HX10S 50KW High Frequency X-ray Machine (Analogue Radiography System)

This high-power 50KW medical X-ray system is a professional high frequency X-ray machine engineered for clinical full-body radiography, featuring ultra-strong penetration, intelligent dual-loop control and flexible operation. As the high-performance HX10S high frequency X-ray machine, it meets the high-demand imaging needs of medical institutions, including obese patient examinations, with stable and reliable performance. Below are its complete technical specifications:

Generator Specifications

380VAC Three Phase (±10% 50/60Hz) & 220VAC Single Phase (±10% 50/60Hz)

• Nominal Electric Power: 50KWThe ultra-high 50KW power output makes this 50KW medical X-ray system ideal for high-difficulty clinical imaging with unrivaled penetration.
• Tube Current (mA): 10~630mA (both power supply modes)
• Tube Voltage: 40~150kV (both power supply modes), 1kV step adjustmentThis 40-150kV digital radiography unit offers precise voltage control for all human body part imaging needs.
• Current Time Product (mAs): 0.4~1000mAs (380VAC); 0.1~630mAs (220VAC)
• Loading Time (ms): 1~10000ms (380VAC); 1~20000ms (220VAC)
• Inverter Frequency: 50kHz ~ 220kHz (both power supply modes)Wide frequency range ensures stable energy output for clear and detailed radiographic results.

X-ray Tube Specifications

• Focal Spot: 0.6mm/1.2mmDual focal spot sizes support high-resolution fine imaging and large-field scanning for comprehensive full-body clinical X-ray machine applications.
• Focal Power: 20KW/50KW
• Tube Voltage Range: 40-150kV
• Anode Heat Capacity: 212 KJ (300KHU)Extra-large heat capacity enables continuous high-intensity clinical operation without frequent downtime.
• Anode Target Angle: 12°
• Rotary Anode: 2800 rpm (50Hz); 3200 rpm (60Hz)Variable-speed rotary anode ensures uniform heat distribution and extends the service life of the X-ray tube.

Collimator Specifications

• Power Supply: AC/DC 24V ±10%
• Field Light: LED, 5W
• Collimator Rotation Range: 360° any angleFull-angle rotation meets flexible positioning needs for different radiographic postures and body parts.
• Min. Brightness: ≥160Lux
• Maximum Field Size: ≥430mm×430mm at SID=100cm
• Light Timer: 30±2s

Radiographic Table Specifications

• Type: Mobile Type, Four-way Floating Tabletop, Foot Pedal Operated Tabletop FloatThe humanized floating design optimizes patient positioning for the HX10S high frequency X-ray machine, improving examination efficiency.
• Table Size: 2300×800mm×720mm
• Range of Vertical Floating: 90mm
• Range of Horizontal Floating: 260mm
• Bucky Size: 17×17inch
• Tube Rotation Angle Range: Manual ±180°
• Tube Column Rotation Range: Manual ±180°
• Column Moves Up and Down: Manual/Automatic
• Tube Column Moving Range Along Bed: 1770mm
• Tube Vertical Movement Range: 980mm-1940mm

Bucky Stand Specifications

• Control Mode: Manual/AutomaticDual control modes enhance operational flexibility for different clinical working scenarios.
• Height: ≤2250mm
• Lifting Stroke: 1400mm, ±5%
• Size of Wall Stand Tray: 17×17inch

Core Functional Features

• Full-body Radiography Capability: Adapts to head, chest, abdomen, waist, thorax, pelvis, limbs and other body parts; supports lay decubitus, normotopia, side position and other postures.
• DR Upgrade Reserve Interface: Rich expansion ports for future digital radiography upgrade, a key advantage of this DR upgradeable X-ray equipment.
• Fault Self-diagnosis and Protection: Real-time fault detection and automatic protection ensure safe and stable long-term operation.
• Automatic Calibration of Tube Current: Maintains imaging consistency and reduces manual adjustment work for medical staff.
• Filament Dormancy Function: Saves energy and extends the service life of the X-ray tube, reducing maintenance costs.
• Analog-digital Double-loop Control: The analog-digital double-loop X-ray features simple operation and high intelligence, suitable for different skill levels of medical staff.
• Ultra-strong Penetration: High kV, high current and 50KW high power design makes this high penetration medical X-ray ideal for obese patient imaging and thick tissue radiography.
