1. X-ray Generator Specifications

• Generator Type: High Frequency Inverter 80kHz
• Input Power: Single Phase 220VAC, 50/60Hz
• Radiographic Ratings (Large Focal Point): 20-35kV/10-510mAs
• Radiographic Ratings (Small Focal Point): 20-35kV/10-100mAs
• Power Rating: 6kW

2. X-ray Tube Details

• Focal Spot Size: Dual Focus 0.2 / 0.4mm
• Target Material: Molybdenum (Mo)
• Port Material: Beryllium (Be)
• High-speed Anode Drive: 2800rpm
• Target Angle: 12°
• Anode Heat Storage: 80KJ
• Anode Cooling: Air Cooling
• Filtration: Mo(0.03mm)

3. Radiographic Stand Parameters

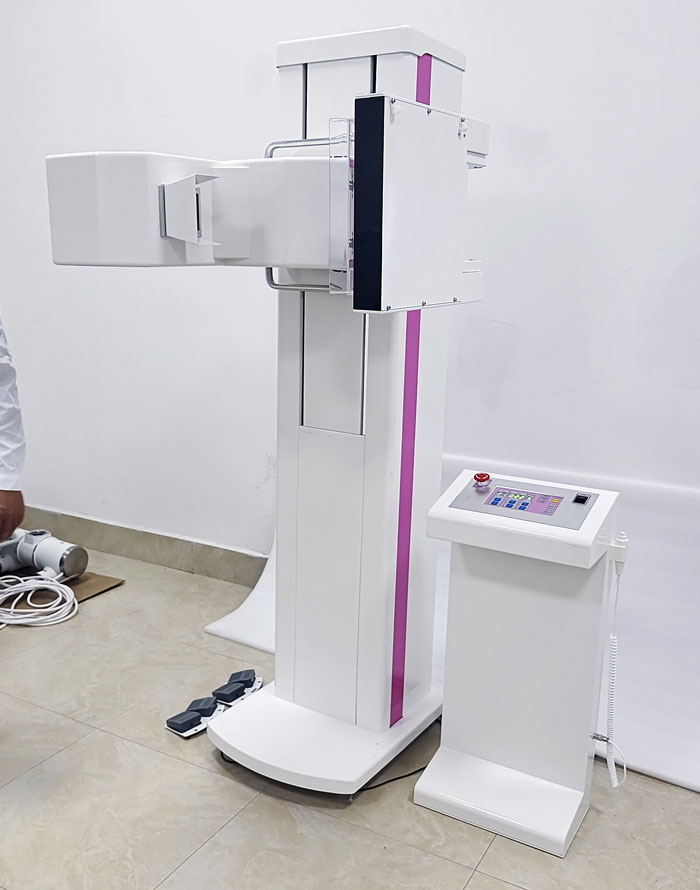

• U-ARM Vertical Movement: 590mm

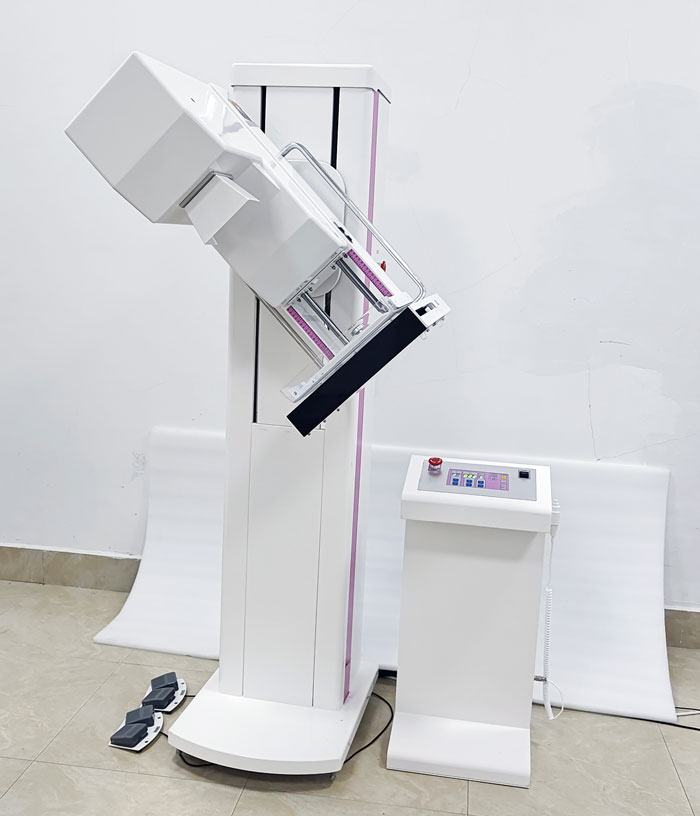

• Rotation Range: +180°~-165°
• SID (Source to Image Distance): 650mm

4. Cassette & Image Receptor

• Standard Size: 24cm×30cm (18cm×24cm Optional)

5. Mammography Detector Technical Data

• Detector Technology: Amorphous Silicon
• Scintillator: CsI
• Active Area: 235×290mm
• Pixel Matrix: 2762 × 3408
• Pixel Pitch: 85μm
• Spatial Resolution: 6 lp/mm
• AD Conversion: 16 bit
• Dynamic Range: >76 dB
• Chest Wall Distance: ≤3mm
• Data Interface: AED
• Trigger Mode: Outer / Software / Prep

6. Power Requirements

• Line Voltage: 220Vac@15A, Single Phase

7. Computer Configuration

• Memory: 8GB RAM
• Storage: 128G + 1TB Hard Disk
• Monitor: 23.8-inch
• Operating System: Win10 64-bit
• Performance: Friendly & Reliable

8. Key Performance Advantages

• Reduces glandular dose & eliminates retakes
• Extends X-ray tube lifespan
• Automated operation for efficient examinations
• Sleek, lightweight bucky for easy cassette handling
• Enhances patient comfort

Product Highlight Description

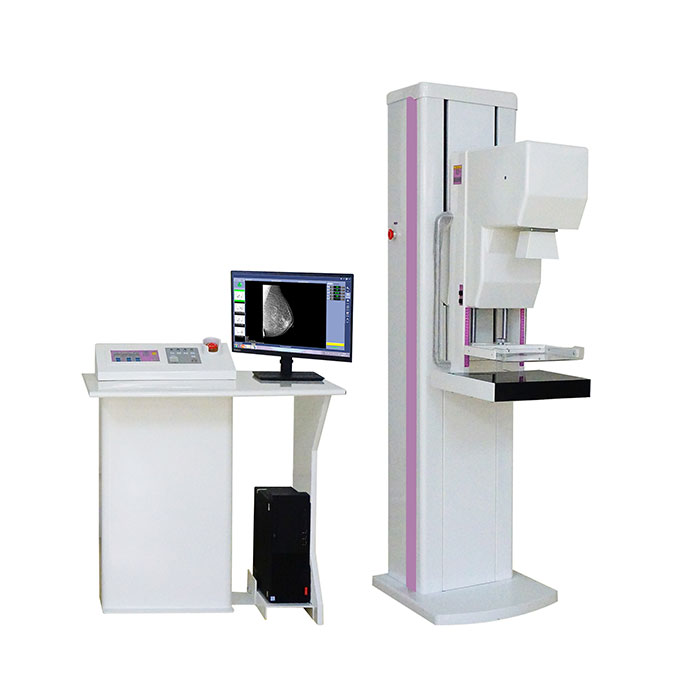

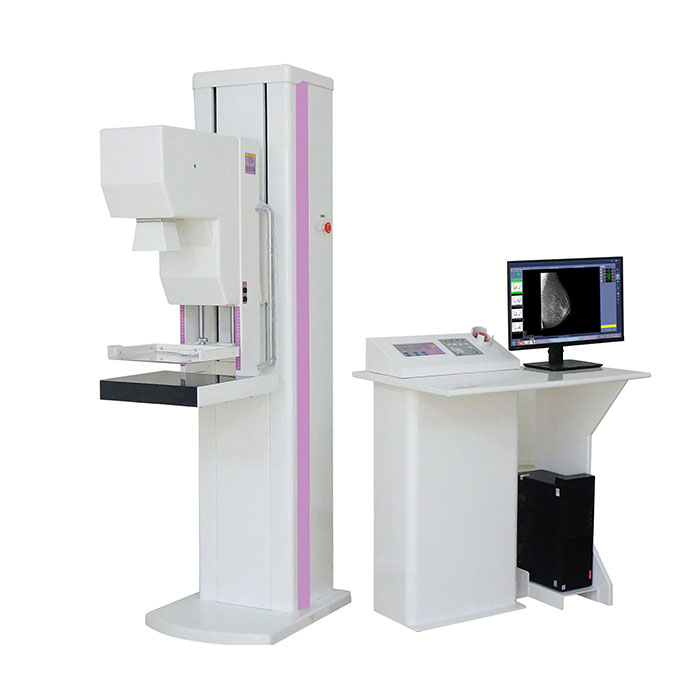

The MSLRX13 digital mammography machine is a high-performance mammography system featuring an 80kHz high-frequency inverter generator and dual-focus 0.2/0.4mm X-ray tube. Equipped with an amorphous silicon detector and CsI scintillator, it delivers 6 lp/mm spatial resolution and >76dB dynamic range. Designed for clinical efficiency, it reduces glandular dose, eliminates retakes, and streamlines workflows via automation. With a 24cm×30cm (optional 18cm×24cm) cassette and ergonomic U-ARM design, this reliable mammography equipment ensures patient comfort while maintaining top-tier imaging quality.
