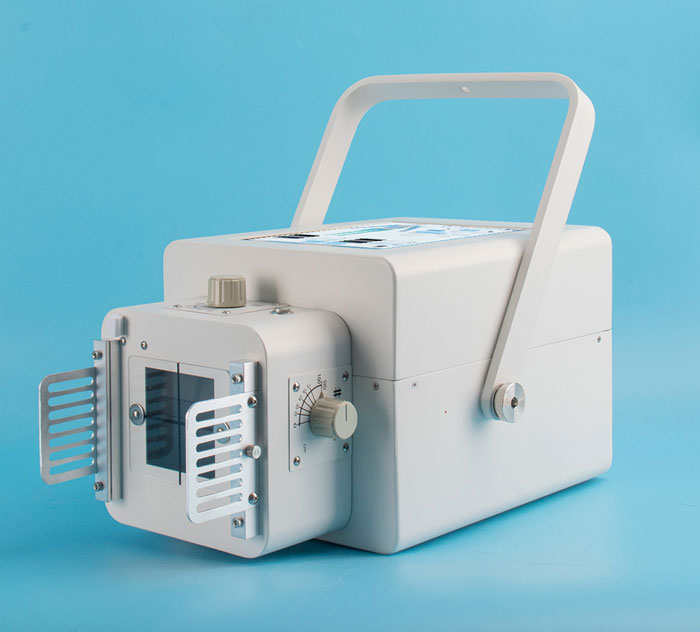

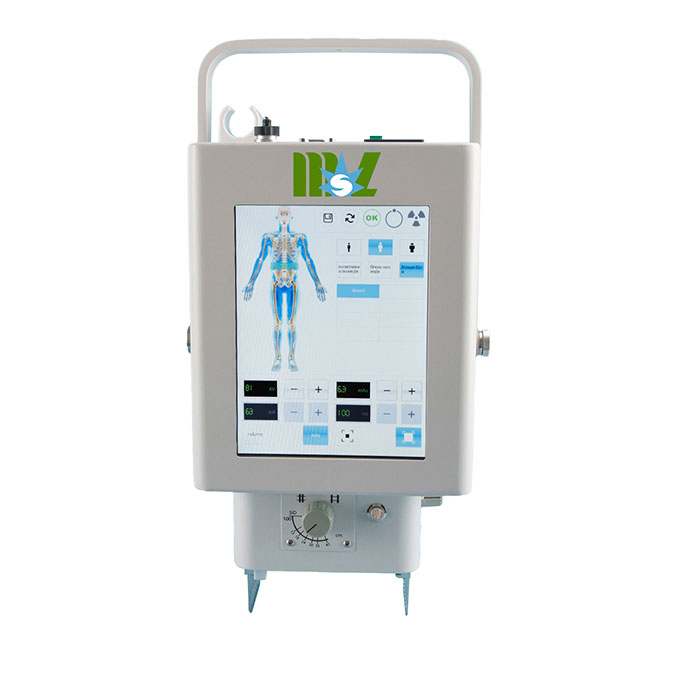

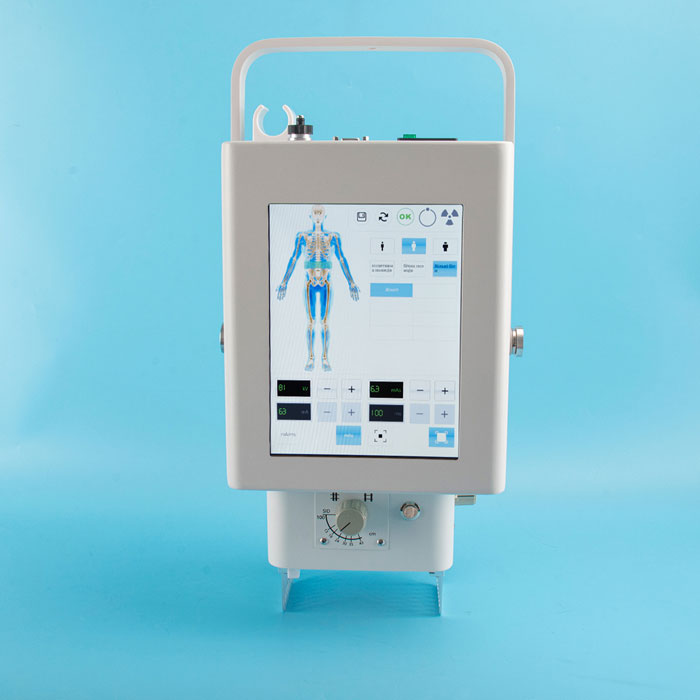

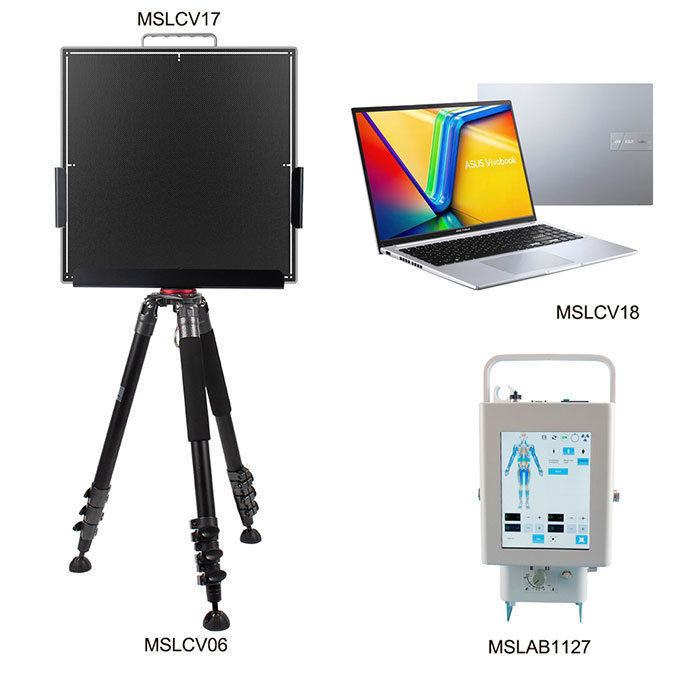

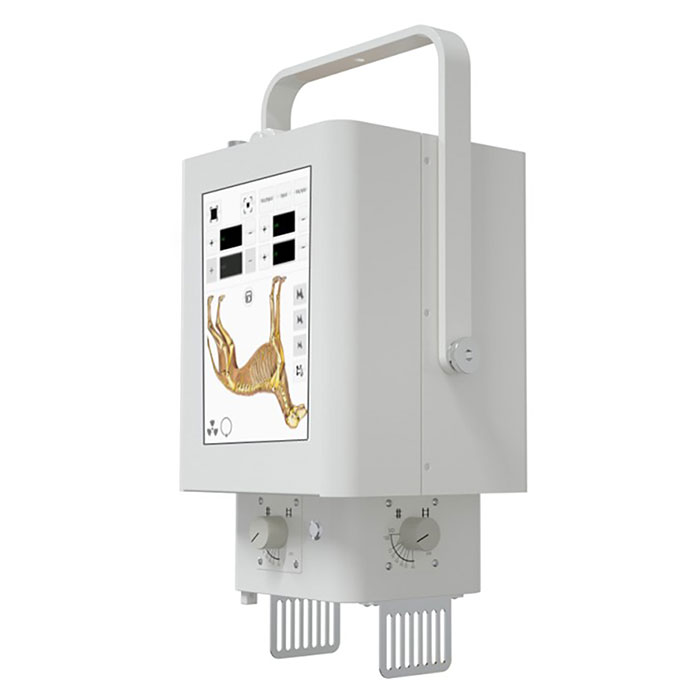

Product Specifications - MSLAB1127 High Frequency X-ray Source (Human Use)

This high frequency X-ray source is engineered for human medical diagnostic imaging, boasting stable performance and precise parameter control. As a professional 5.6kW medical X-ray source, it meets the rigorous demands of clinical medical imaging applications. Below are its complete technical specifications:

Basic Core Parameters

• Working Frequency: 80kHz - 200kHzThe ultra-wide high-frequency range makes this 80-200kHz X-ray unit suitable for diverse human medical imaging scenarios with stable energy output.
• Input Voltage Range: 100-264VAC
• Input Frequency Range: 50/60Hz ±1HzWide voltage and frequency adaptability ensures reliable operation in different power supply environments.

Output Performance

• Max Power: 5.6kW
• Nominal Power: 5.6kWConsistent high power output is the core advantage of this 5.6kW medical X-ray source for clear human medical imaging.
• kV Range: 40-125kVThis 40-125kV X-ray source offers flexible voltage adjustment to match different human tissue imaging needs.
• kV Ripple: ≤5% @100kV
• kV Rising Time: ≤1ms @100kV (10% - 90%)
• Exposure kV Accuracy: ≤±2% or <1kV
• mA Range: 5-100mA
• Exposure Tube Current Accuracy: ±20% @<10ms
• mAs Range (Non-AEC): 0.1 - 320mAs
• mAs Accuracy: ±(5%+0.2mAs) @>5ms; ±(10%+0.2mAs) @≤5ms
• Exposure Time Range: 1ms - 10000ms
• Exposure Time Accuracy: ±(2%+0.2ms) @>5ms; ±(5%+7ms) @≤5ms

Core Functional Features

• Auto-tube Calibration: SupportedRealizes automatic calibration of the X-ray tube for consistent imaging quality of the human use medical X-ray source.
• Technique Selection: 2 modes (kV-mA-ms; kV-mAs)Flexible parameter setting modes meet the personalized operation needs of medical imaging staff.
• Service Software: SupportedFacilitates device maintenance, parameter adjustment and data management.

Monoblock Performance

• Tube Model: Kll OSB-0.6/1.8-125 (Optional)
• Nominal Focal Spot Size: 0.6mm/1.8mmDual focal spot sizes make this 0.6/1.8mm focal spot X-ray suitable for both high-resolution and large-field human imaging.
• Thermal Capacity: 40kJ
• Maximum Anode Heat Storage Capacity: 20kJ
• Anode Disk Target Angle: 15°
• Filament Frequency: 20kHz ±2kHz
• Max Filament Current: 5A

Communication Interfaces

This WIFI RS232 X-ray source is equipped with dual communication modes for seamless data transmission:

• WIFI: Supported
• RS232: Supported

Optional Accessories

• Hand Switch: Yes (Optional)Humanized accessory design for convenient operation of the medical X-ray device.

Environment & Safety Requirements

• Grounding Resistance: ≤100mΩ
• Insulation Voltage: 2250VDC 10mA/1min
• Earth Leakage Current: Compliant with industry safety standards
• Cooling System: Natural air coolingThe natural air cooling X-ray source features a simple cooling structure and stable operation without additional cooling equipment.
• Operating Temperature: 0°C - 40°C
• Relative Humidity: 10% - 90%, Non-condensing
• Atmospheric Pressure: 700hPa - 1060hPa

Appearance & Dimensions

• Product Size: 383mm * 240mm * 214mmCompact size for easy installation and placement in various medical imaging rooms.
• Net Weight: 14.5kg ±0.5kgLightweight design facilitates device movement and deployment.
