MSLHDX15 Handheld Portable X‑ray System

Complete Technical Specifications

MSLHDX15 Basic Product Information

Model: MSLHDX15 Product Name: MSLHDX15 Handheld Portable X‑ray System Core Feature: This MSLHDX15 battery‑powered x‑ray generator adopts high‑frequency inverter technology, delivering clear imaging with low‑radiation output for mobile clinical radiography. Operation Mode: Discontinuous operation；longest excitation ON time vs shortest excitation OFF time = 1:30

MSLHDX15 X‑ray Output & Power Performance

Nominal Power: 0.21 kW (210W, 70kV, 3mA, 0.1s) Max Output Load Combination: 70 kV, 3 mA, 2 s Max Inverter Frequency: 80 kHz for this high‑frequency clinical x‑ray machine Exposure Time Adjustment Range: 0.01‑2.00 s, adjusted according to R10 coefficient X‑ray Field Size: 56 mm × 80 mm Focus‑to‑Skin Distance: 211 mm ± 3 mm

MSLHDX15 X‑ray Tube Assembly Parameters

X‑ray Tube Model: KL11‑0.4‑70 (Kailong) Target Material: Tungsten Anode Target Angle: 12° Nominal Focal Spot: 0.4 mm Inherent Filtration: ＞0.8 mm Al /75 kV Additional Filtration: 1.0 mm Al Total Filtration: ＞2.5 mm Al

MSLHDX15 Battery & Charger Parameters

Built‑in Lithium‑ion Battery: DC 14.4 V, 2500 mAh (±10%) Number of Exposures at Full Charge: ≥160 times (70kV,3mA,0.5s) for this MSLHDX15 handheld portable x‑ray system Power Adapter Input: Single‑phase AC 100‑240 V, 50/60 Hz, 286 W Power Adapter Output: DC 16.8 V, 1.0 A, 16.8 W

MSLHDX15 Physical & Display Parameters

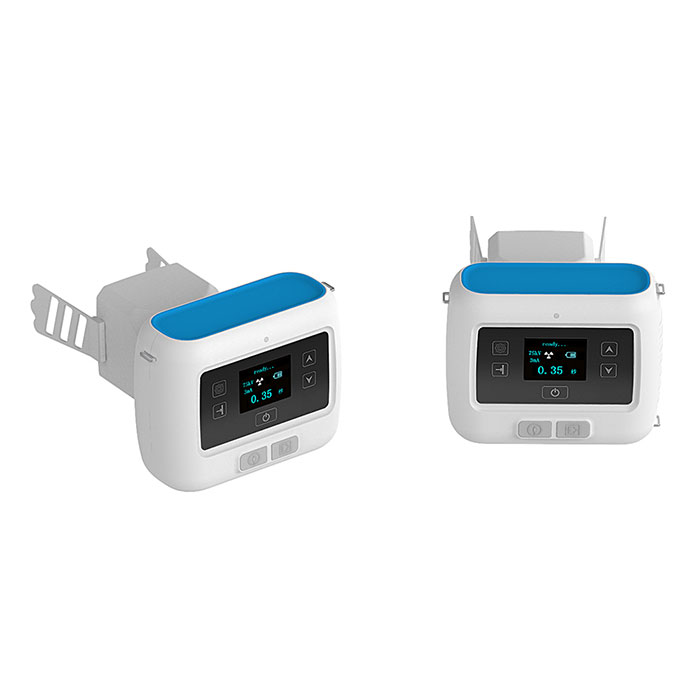

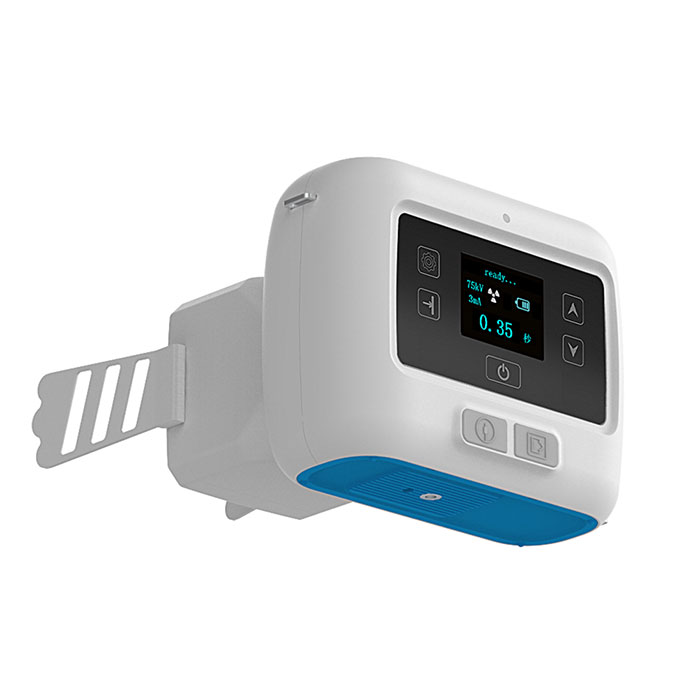

Net Unit Weight: 1.820 kg, lightweight for one‑hand operation High‑Voltage Transformer Weight (with lead sheet): 1.12 kg High‑Voltage Transformer Weight (without lead sheet): 0.850 kg High‑Voltage Transformer Dimension: 117.09 × 47.50 × 96.34 mm Screen Specification: 2.4‑inch Display, 320 × 240 pixels

MSLHDX15 Radiation Safety Performance

Surface Leakage Radiation: ≤0.25 mGy/h (70kV, 2.5mA, 2s), low‑radiation portable x‑ray unit meets international safety standards

MSLHDX15 Working & Storage Environment

Operating Temperature: ‑20 ℃ ~ +55 ℃ Storage Humidity: 10%‑93%

The MSLHDX15 handheld portable x‑ray system is a lightweight battery‑powered x‑ray generator built with high‑frequency inverter technology. It reaches max 70kV,3mA output and supports over 160 exposures per full charge. Equipped with KL11‑0.4‑70 X‑ray tube and 2.4‑inch screen, this low‑radiation portable x‑ray unit weighs only 1.82 kg. Strict leakage‑radiation control makes it reliable for flexible on‑site mobile clinical radiography.
