1.Single table and single tube
2.High quality, low price
3.Filter-ray device radiography

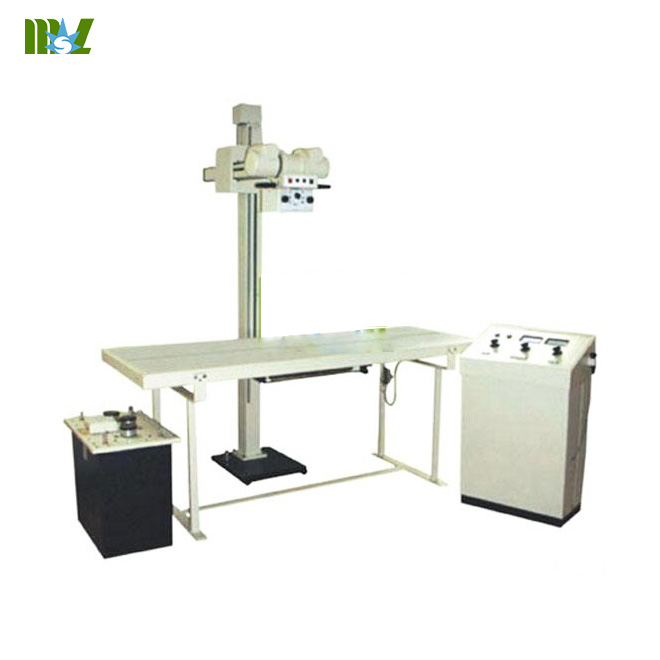

Buy 100ma best x ray machine-MSLCX29
best x ray machine
Application
General radiography,Filter-ray device radiography
Configuration
Control,HT generator unit,Ht cable,X-ray tube uni,Diagnostic table,Collimator.
MAIN CHARACTERIDTICS
1 Single table and single tube.
2 Design according to the electric mechanism of middle-size machine, the function is reasonable function.
3 High-voltage system is of split structure, with high-voltage generator of full-wave rectification and stable operation
4 Supply voltage (V), photograph kilovolt (kV) and infinitely variable control.
5 Equipped with the manostat for filament of X-ray tube and the spacecharge compensator as to ensure the stable and accurate output.
6 Equipped with the capacity limitation and portection circuit and Kv mA S interlock limit protection.
7 The timer circuit grade according to R10 priority coefficient and an exact time control.
8 The photographic flat bed has a vibrating ray-filter.
9 The pillar has only the bottom trick, with easy installation.
MAIN TECHNICAL INDEXES
|
|
Voltage
|
220V/380V±10single phase
|
|
Frequency
|
50Hz±0.5Hz
|
|
Capacity
|
10KVA
|
|
Intemal resistance
|
380v:2Ω,220V:0.6Ω(2Ωat80v; 06Ωat220V)
|
|
Max DC output voltage
|
90KV
|
|
Max DC output current
|
100mA
|
|
Radiograph
|
Voltage
|
50-90KV
|
|
current
|
Small focus 15mA , big focus30mA 60mA 100mA
|
|
time
|
0.04-6.3s,24grades together
|
|
High-voltage generator
|
Capacity
|
7KVA
|
|
X-Ray tube
|
Model
|
XD4-2.9/100
|
|
Focus
|
Small focus 1.8mm big focus4.3mm
|
|
Radiograph table
|
Bed face (L×W×H)
|
1960×660mm×700mm
|
|
Bucky
|
Grid density N28
|
|
Convergence distance fo 100cm
|
|
Grid ratio r8
|
|
Max size of cassette
|
356mm×432mm(14×17)
|
|
Pollar of X-ray source unit
|
Moving in length (along The bottom table )
|
1350mm
|
|
moving un breath
|
360mm
|
|
moving up and down
|
720~1800mm
|
|
MAX VOLUME OF RADIOGRAPH
|
|
Focus of X-Ray tube
|
Radiograph mA
|
Max Radiograph KV
|
Max exposure time allow
|
|
Small focus
|
15mA
|
90KV
|
6.3S
|
|
Large focus
|
30mA
|
90KV
|
6.3S
|
|
60mA
|
90KV
|
6.3S
|
