1.fluoroscopy and radiography
2.suitable for hospitals and health centers
3.Single table and single tube with rotated anode
Features:
Double diagnostic table and double X-ray tube with rotated anode.
KV,mA and a interlocking protection and radiograph time-limited protection devices are provided.
Filament for stabilizing voltage, space charge compensation and anode starting-up protection device are provided.
Voltage of power supply and kV with digital display can be adjusted constantly and respectively.
It becomes convenient to install without above-ground railway and be operated easily.
Electromagnetism are provided for pillar lengthways, crosswise, and sleeve moving up and down.

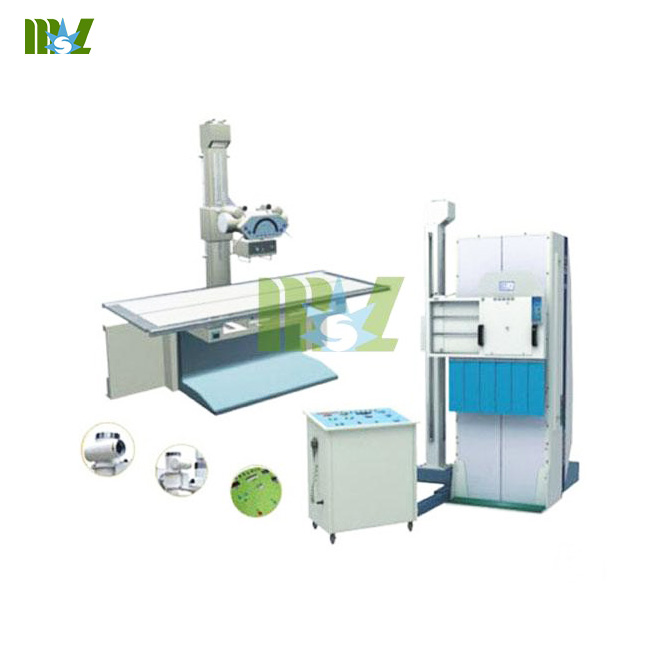

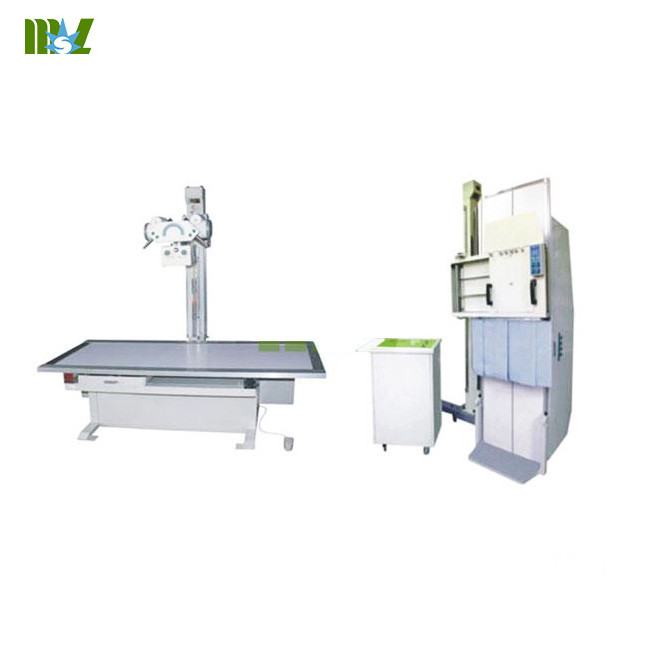

medical x ray machine for sale
Technology Parameters
|
Description
|
Technology Parameters
|
|
Power Supply
|
Voltage
|
A.C.380V / 220V (±10%)
|
|
Frequency
|
50Hz ± 1Hz
|
|
Capacity
|
20KVA
|
|
Power Supply Resistance
|
A.C.380V≤1.0Ω; A.C.220V≤0.3Ω
|
|
Maximum tube voltage
|
125KV
|
|
Maximum tube current
|
200mA
|
|
Fluoroscopy
|
Tube voltage
|
40~110KV
|
|
Tube current
|
0.5~5mA
|
|
Radiograph
|
Tube voltage
|
40~125KV
|
|
Tube current
|
Small Focus: 25mA,50mA,100mA; Big Focus:150,200mA
|
|
Spot film
|
100mA (Small Focus)
|
|
Time
|
0.04~6.3s Divided into 23 grades from 0.04~6.3s
|
|
High Voltage Generator
|
Capacity
|
15KW
|
|
X-ray Tube
|
Model
|
XD 51-20,40 / 125
|
|
Focus
|
Small Focus 1×1mm2 Big Focus2×2mm2
|
|
Rotated Speed of anode
|
2800r / min
|
|
Diagnostic Table
|
Scope of rotation
|
90°~ 0°~-5°
|
|
Mobile beam filtration device
|
Grid density N=28
|
|
Focus Distance f o>1000mm
|
|
Grid Ratio r=8
|
|
Distance from surface to film
|
≤60mm
|
|
Stomach & Intestine Radiograph Device
|
Spot film device specification(Stomach & Intestine Radiograph)
|
127×178mm( 5”×7”) binary picture
|
|
203×254mm( 8”×10”) binary picture
|
|
254×305mm(10”×12”) binary picture
|
|
Moving lengthways (along ground railway)
|
1500mm
|
|
Moving crosswise (left & right)
|
740mm
|
|
Moving up and down
|
700mm ~ 1900mm
|
|
Way of locking
|
Electromagnetism locking
|
|
Beam Limited Device
|
Manually single automatic multi-optional
|
|
Table for radiograph
|
Length×width×height
|
2000×760×680(mm)
|
|
Movable scope of the bed
|
Lengthways: ±450mm; Crossways: ±110
|
|
Pillar moves lengthways
|
1000mm
|
|
Distance from surface to film
|
≤60mm
|
|
Bulb tube moves up and down
|
1100mm~1760mm
|
|
Radiography item
|
10”×12” 11”×14” 12”×15”
|
