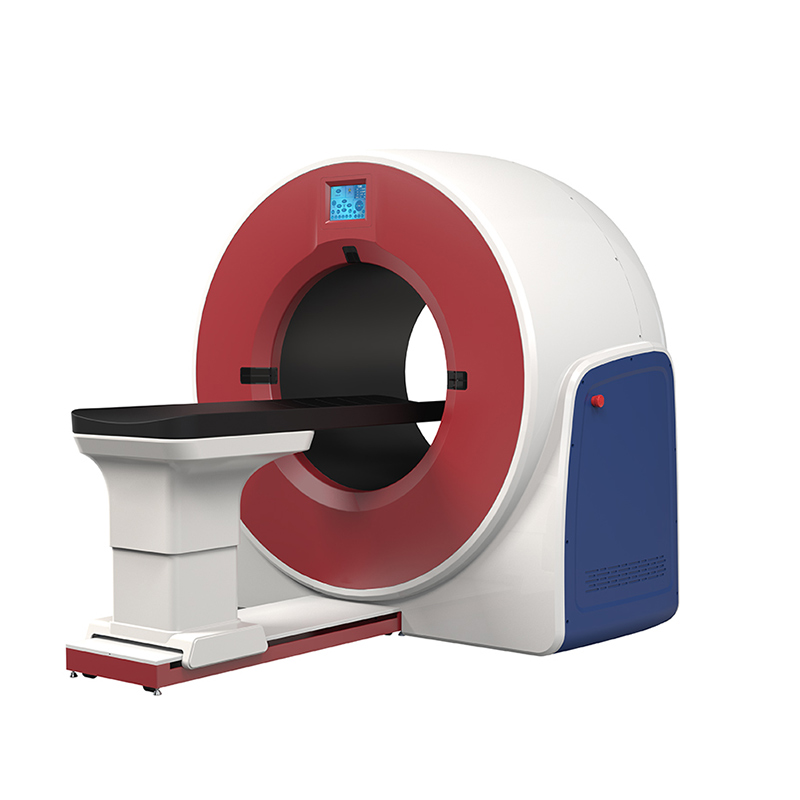

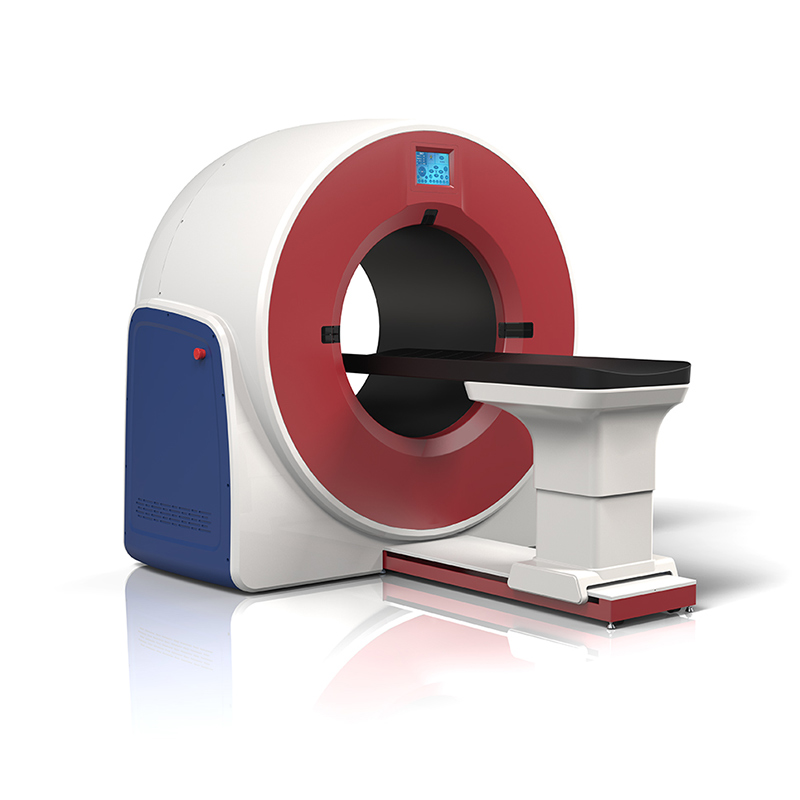

MSLCT10 Veterinay CT Pioneer Empowering Animal Healthcare

Technical Parameters
Voltage: 220V±10%
Power Resistance: ≤0.5Ω
Frequency: 60Hz±3Hz
Power Capacity: 15kW
Power Cord: 8mm² power cable

Lead Shielding: 3mm lead equivalent
Temperature: 20°C-35°C
Relative Humidity: 10%-85%
Air Pressure: 700-1060hPa
Scan Time: 4.5s (ultra-fast scanning)
Slice Thickness: 0.14mm (ultra-thin)
Bore Size: 31.5" (80cm)
Field of View (FOV): 16" (40cm) extra-large
Scan Length: 28.5" (72cm)

Frame Rates: Supports 5fps, 10fps, 20fps
Exposure Time: Continuous exposure for 2 minutes
Imaging Quality for Different Weights:
0~2kg: Medium
2~30kg: Excellent
30-50kg: Good
50-70kg: Passable
Structure Dimensions (L×W×H): 290cm×170cm×160cm
Table Movement Range:
Horizontal: 720mm (28.35")
Vertical: 280mm (11.03")
CT Spatial Resolution: 2.0lp/mm
DR FOV: 35cm×26cm (13.8"×10.2")
DR Spatial Resolution: 3.0lp/mm

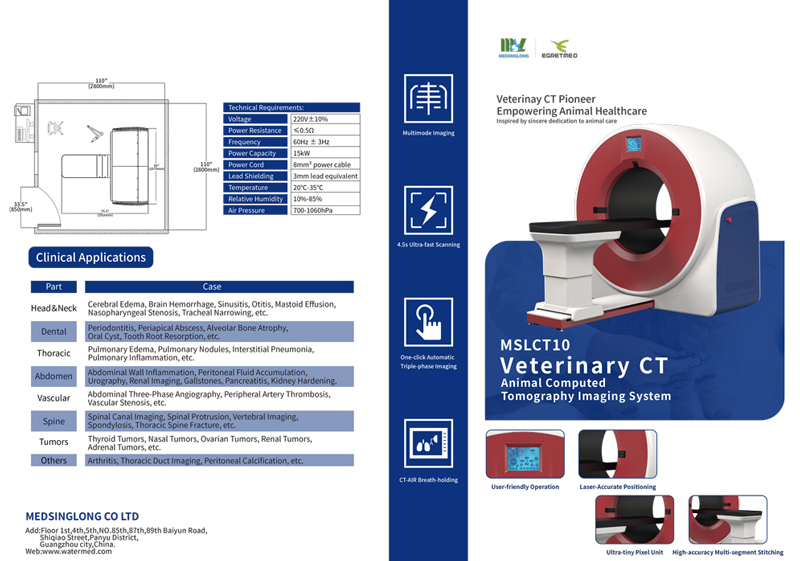

Technical Requirements:

Voltage 220V

Power Resistance ≤0.50

Frequency60Hz 土3Hz

Power Capacity  15kW

Power Cord   8mm2 power cable

Lead Shielding  3mm lead equivalent

Temperature 20°-35°

Relative Humidity 10%-85%

Air Pressure 700-1060hPa

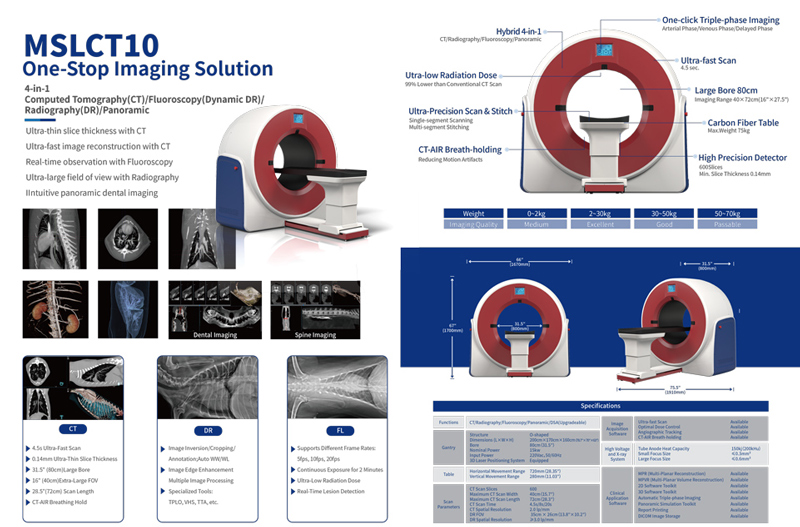

4-in-1

Computed Tomography(CT)/Fluoroscopy(Dynamic DR)/

Radiography(DR)/Panoramic

Ultra-thin slice thickness with CT

Ultra-fast image reconstruction with CT

Rea-time observation with Fluoroscopy

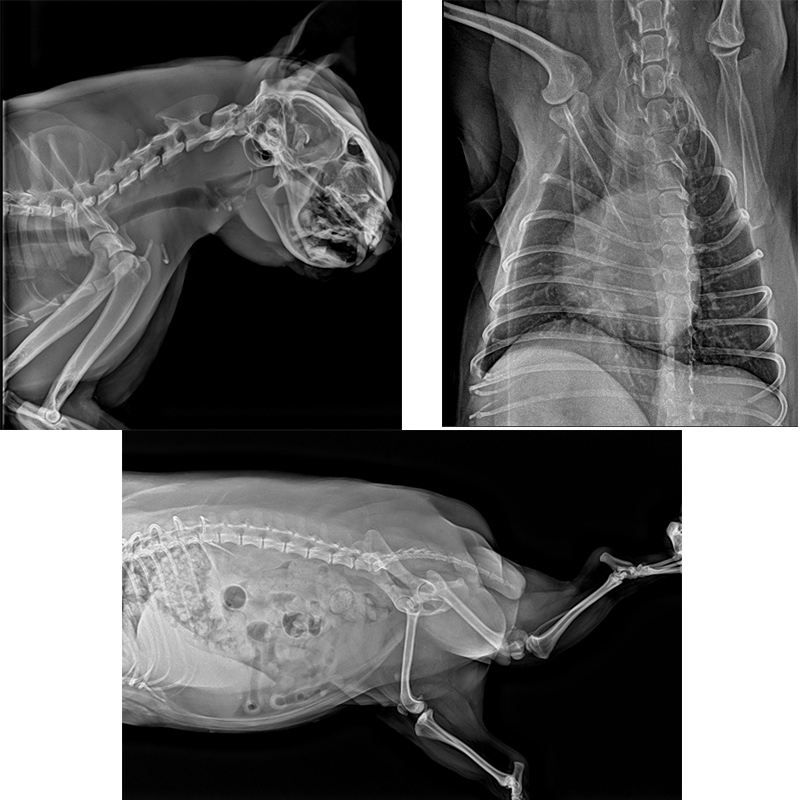

Ultra-large field of view with Radiography

Intuitive panoramic dental imaging

Head&Neck

Cerebral Edema, Brain Hemorrhage, Sinusitis, Otitis, Mastoid Effusion,

Nasopharyngeal Stenosis, Tracheal Narrowing, etc.

Dental

Periodontitis, Periapical Abscess, Alveolar Bone Atrophy,

Oral Cyst, Tooth Root Resorption, etc.

Thoracic

Pulmonary Edema, Pulmonary Nodules, Interstitial Pneumonia,

Pulmonary Inflammation, etc.

Abdomen

Abdominal Wall Inflammation, Peritoneal Fluid Accumulation,

Urography, Renal Imaging, Gallstones, Pancreatitis, Kidney Hardening.

Vascular

Abdominal Three- Phase Angiography, Peripheral Artery Thrombosis,

Vascular Stenosis, etc.

Spine

Spinal Canal Imaging, Spinal Protrusion, Vertebral Imaging,

Spondylosis, Thoracic Spine Fracture, etc.

Tumors

Thyroid Tumors, Nasal Tumors, Ovarian Tumors, Renal Tumors,

Adrenal Tumors, etc.

Others Arthritis, Thoracic Duct Imaging, Peritoneal Calcification, etc.
