1. Max Output Power：30W

2. Characteristic
a. Control the power by using the power adjustment button of the ESU pencil so as to control output power and the operation time is shortened.
b. Dual microprocessors (one is to control function & the second is to terminate activation if a hazard or safety issue is detected.
C. Memory Function: Set up the requested function parameter after turn-off. At the next startup the previous setting parameter will be displayed.
d. From 10W to 30W, the output of each watts can be manipulated precisely. And below 10W, the adjustment is done at the 0.1W amplitude by up and down, all of micro surgery is effected by this machine.

e . Stimulate the argon system for activating the spray coagulation.
f. can be used with disposable electrosurgical pads

3. Output Mode
Mono-polar Coagulation：（30W，Load：1000Ω）
Bipolar Coagulation 1：（30W，Load：200Ω）

4.  Scope of Application
Dermatology，Plastic Surgery，Proctology，Gynecology，Ophthalmology，Urology，
Otolaryngology，Dental/Oral Surger

5. Technical Parameter：
a. Operating ambient temperature：5℃~40℃
b. Relative humidity range：≦80%
c. Pressure range：86.0～106.0kPa
C. Power Supply：220/110V, 50/60Hz
e. Operating Frequency：450kHz±50kHz

6. Transportation Data
Size：22.5cm（L）*19.5cm（W）*12cm（H）（ESU Generator size）；33（L）*25（W）*26.5cm（H）（outer carton）
Weight：2.5kg（ Net Weight ）；4 kg（ Gross Weight ）

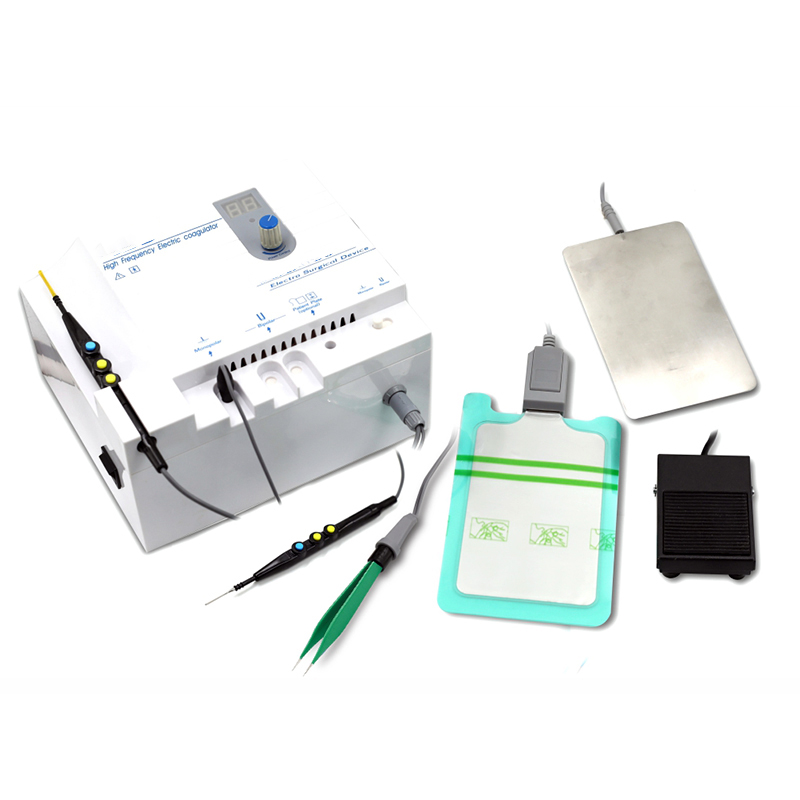

7. Standard Matching Accessories
Instruction for Use：1pc
Power Cord：1pc
Individual Pedal Switch：1pc
Reusable Bipolar Forceps with Cable：1 set

Reusable ESU power control pencil: 2 pc
Disposable ESU Pad (solid) : 2pcs
Reusable Stainless Steel plate with cable: 1 set
Reusable cable for disposable pad: 1pc
Disposable Sharp short Blade: 20pcs
Disposable Blunt short Blade: 20pcs
Wall Mount Kit: 1 pc
