MSLRFS03 sports‑medicine arthroscopic low‑temperature plasma ablation system uses 100 kHz square‑wave bipolar cold coblation operating at 40‑70℃. It supports ablation, cutting and hemostasis for knee, shoulder, hip and small‑joint arthroscopic operations. Comprehensive disposable joint and tendon plasma wands cover meniscectomy, synovectomy and chronic enthesis therapy. Simple OR setup ensures workflow flexibility while protecting healthy articular cartilage during sports‑medicine interventions.

MSLRFS03 Low‑Temperature Plasma ENT Ablation System

Core System Parameters

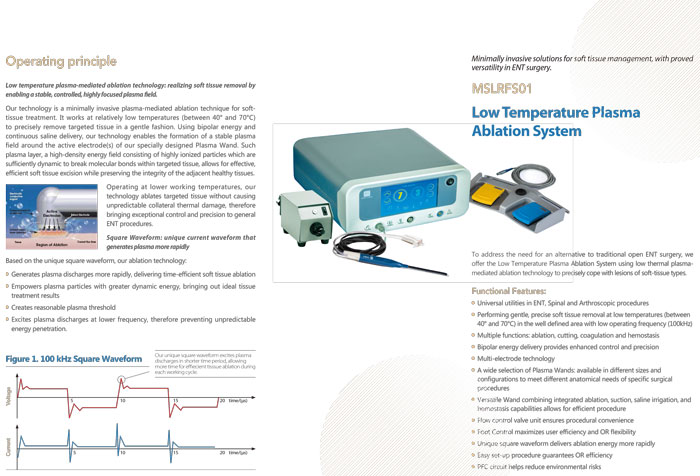

Working Technology

• Technology：Bipolar plasma‑mediated cold ablation
• Waveform：Unique 100 kHz square waveform
• Operating temperature：40‑70℃ low‑temperature ablation
• Working modes：ablation, cutting, coagulation, hemostasis
• Feature：Bipolar energy, eliminates patient return pad

Main Controller Unit

• Display：Full‑screen LCD display for mode, power setting & error message
• Standard accessories：main controller, foot‑switch, saline flow‑control valve unit, patient cable
• Circuit：Built‑in PFC circuit
• Setup：Easy quick setup improves arthroscopic OR workflow efficiency

Disposable Arthroscopic / Sports‑Medicine Plasma Wand Series

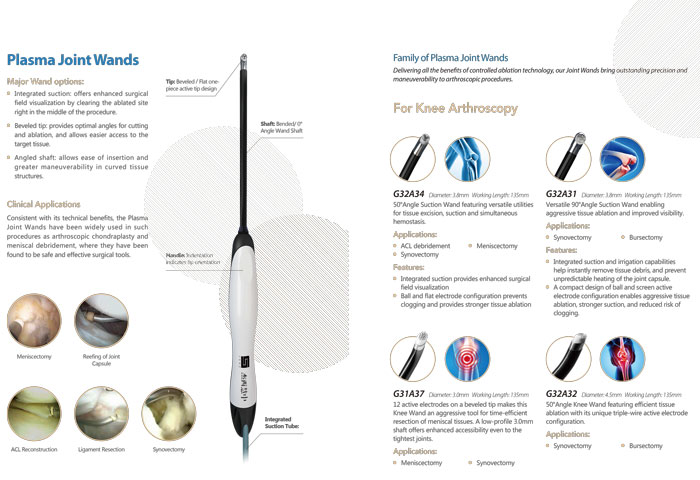

• Knee joint wands：G32A34, G32A31, G31A37, G31A32, G31A33 for meniscectomy, ACL debridement, synovectomy

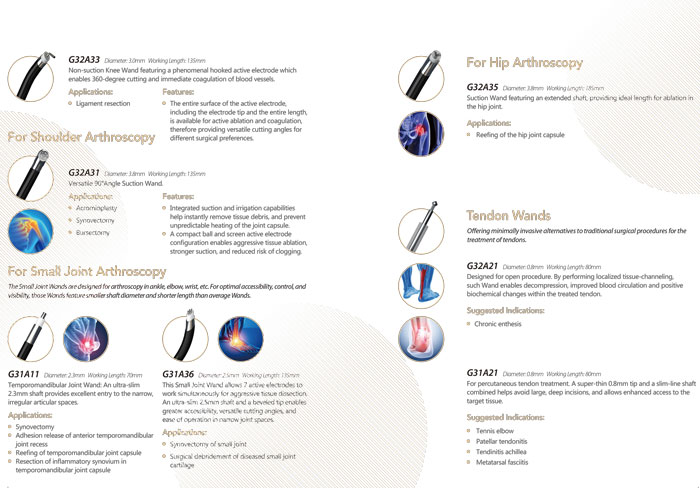

• Shoulder & Hip wands：G32A31(shoulder), G32A35(hip extended‑shaft wand)
• Small‑joint wands：G31A11 temporomandibular joint wand; G31A36 for ankle, elbow, wrist
• Tendon wands：G32A21, G31A21 for tennis elbow, patellar tendonitis & chronic enthesis treatment

Clinical Indications

• Meniscectomy, ACL reconstruction, synovectomy, bursectomy
• Knee, shoulder, hip, ankle, elbow, temporomandibular joint arthroscopic debridement
• Chronic enthesis: tennis elbow, golf elbow, patellar tendonitis, metatarsal fasciitis

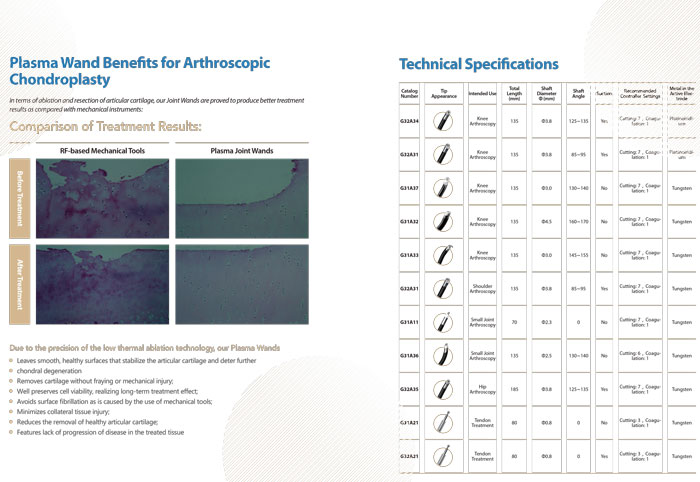

Surgical Performance Advantages

• Integrated suction & saline irrigation for clear surgical field
• Beveled tip & angled‑shaft designs improve access to narrow joint spaces
• Minimal collateral thermal damage, preserves healthy articular cartilage
