Our surgical emergency equipment includes defibrillators, portable ventilators, rapid infusers and emergency surgical kits. Compliant with ISO and WHO standards, these intelligent, modular devices support operating room emergencies, trauma rescue and critical care. Featuring AI monitoring and compact design, they ensure fast response and precise support for medical teams. Trusted by hospitals globally, our emergency medical devices enhance surgical safety and save valuable time in life-threatening situations.

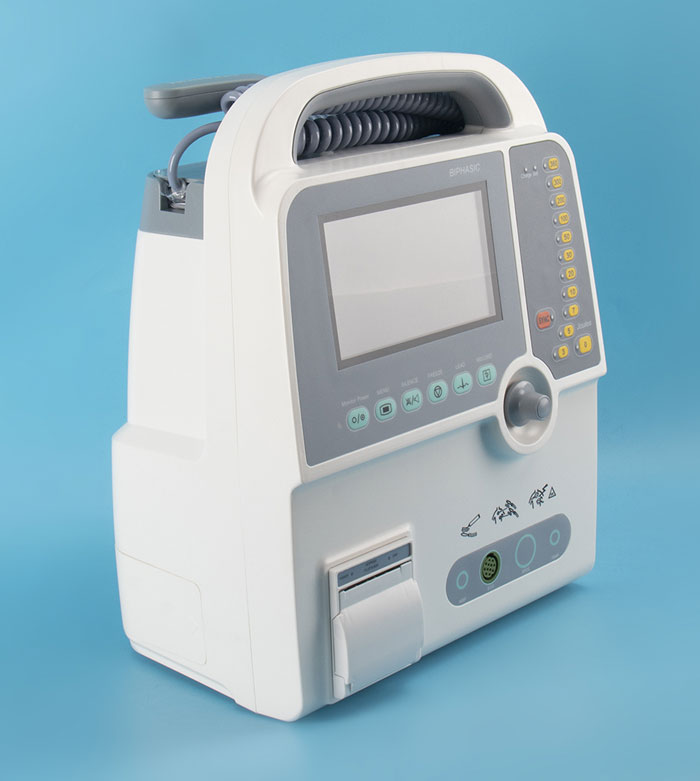

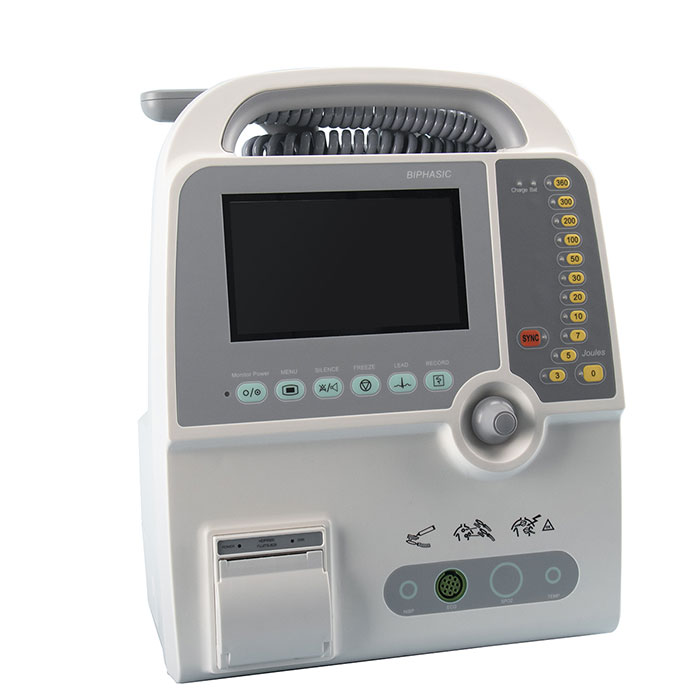

Medsinglong MSLAED09 Biphasic Defibrillator Monitor - Portable ECG & AED Option for Adult and Pediatric Use

Product Name: Medsinglong MSLAED09 Biphasic Defibrillator Monitor | Portable ECG & AED Option (Adult/Pediatric)

Latest Price:

Model No.: MSLAED09

Weight: Net weight: Kg

Minimum Order Quantity: 1 Set Set/Sets

Supply Ability: 300 Sets per Year

Payment Terms: T/T,L/C,D/A,D/P,Western Union,MoneyGram,PayPal

Size:

Color:

QTY:

Product Details

Inquire Now

Quick Details

The Medsinglong MSLAED09 is a high-performance portable biphasic defibrillator monitor equipped with a 7-inch high-resolution TFT display. It supports 3/5-channel ECG monitoring with 20-350 BPM heart rate detection and delivers max 360 joules of energy with fast charging within 10 seconds. The device features reusable composite paddles for both adults and children, ensuring versatile emergency use. Its long-lasting lithium-ion battery enables 10-hour ECG monitoring or 60 full discharges, while the built-in thermal recorder captures comprehensive data. Optional AED mode and pulse oximeter expand its functionality, making it ideal for clinic and emergency scenarios.

Packaging & Delivery

Packaging detail:Standard export package
Delivery detail:within 7-10 workdays after receipt of payment

Specifications

MSLAED09 Biphasic Defibrillator Monitor Technical Specifications

Name: Medsinglong MSLAED09 Biphasic Defibrillator Monitor | Portable ECG & AED Option (Adult/Pediatric)
Brand: msl
SKU: MSLAED09
Price: 6879.00 USD
Availability: InStock
Rating: 5 (95 reviews)

Portable emergency defibrillator monitor Display

Screen Type: High-resolution 7-inch TFT colour display
Resolution: 800×480
Scrolling Speed: 12.5/25/50 mm/sec
Display Information: Heart rate, lead, alarm on/off, emitted energy of the biphasic defibrillator monitor

Portable emergency defibrillator monitor ECG

Patient Connection: 3-channel or 5-channel ECG cable, defibrillation paddles
Lead Selection: Displayed on monitor and paddles, including I, II, III, AVR, AVL, AVF, V
ECG Size: 2.5, 5, 10, 20, 30 mm/mV
Heart Rate Range: 20-350 BPM
Protection: Withstand 4000V AC/50Hz voltage, anti-electrosurgical knife and defibrillation interference

Defibrillator Core Parameters

Waveform: Biphasic
Type: Manual external synchronous/asynchronous defibrillation
Max Energy: 360 Joules
Charging Time: Less than 10 seconds to 360 joules
Energy Selection: 0, 3, 5, 7, 10, 20, 30, 50, 100, 200, 300, 360 joules
Energy Display: Monitor shows selected and delivered energy
Prompt Type: Voice and visual prompts

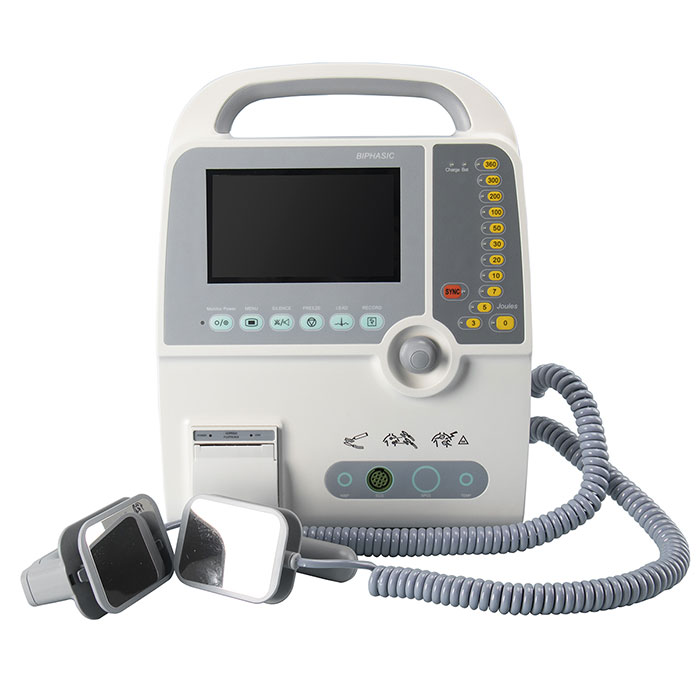

Paddles: Reusable composite paddles, external adult paddles with integrated pediatric paddles

Battery Performance

Battery Type: Li-ion battery Li1104c (11.1Vdc 4000mAh ×2)
Working Duration: Up to 10 hours of ECG monitoring or 60 full-energy discharges
Low Battery Indicator: Flashing icon on display and bat indicator on control panel
Charging Speed: 80% in 3 hours, 100% in 5 hours

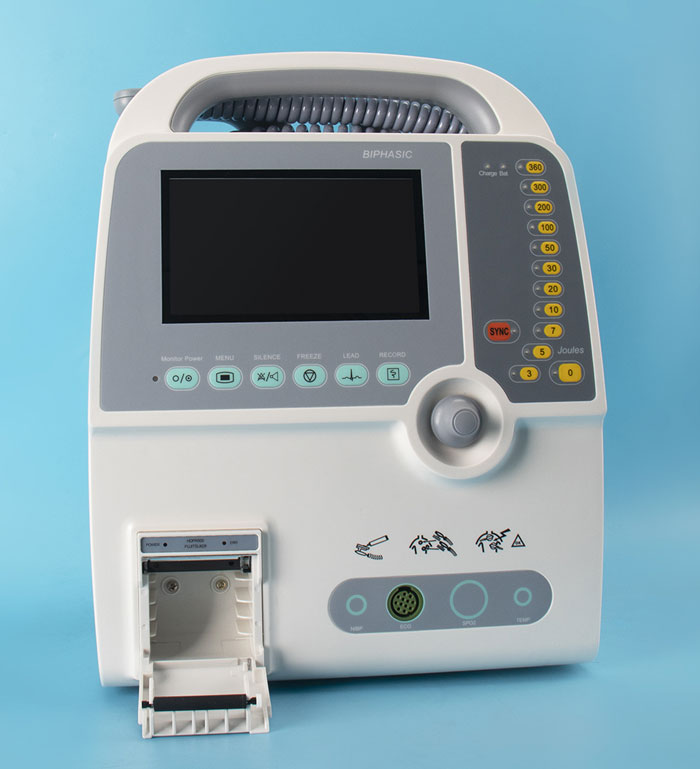

Built-in Recorder

Paper Type: 50mm thermal paper
Printing Process: High-resolution thermal print head
Recording Content: Date, time, sweep speed, waveform amplification, heart rate, energy, ECG waveform
Print Modes: HR limit alarm recording, automatic time-controlled recording, real-time recording, defibrillation trigger recording
Auto REC Settings: Interval optional, includes ECG, PLETH, respiration waveform and parameters; REC length options: 8s, 12s, 16s
Grid Setting: ON/OFF optional

Power Supply

Power Mode: AC-DC dual-use (AC 100V-240V, 50/60Hz)
Optional Vehicle Voltage: DC 12V
Maximum Power: 600W

Optional Functions

Pulse Oximeter: Displays SpO2 value, waveform, pulse
AED Mode: Energy sequences programmable; adult (200J/300J/360J, 150J/150J/200J), pediatric (50J/75J/100J, 30J/30J/50J); voice and screen prompts, exit AED mode in 3 seconds
Portable Accessory: Optional defibrillator bag
