Our surgical emergency equipment includes defibrillators, portable ventilators, rapid infusers and emergency surgical kits. Compliant with ISO and WHO standards, these intelligent, modular devices support operating room emergencies, trauma rescue and critical care. Featuring AI monitoring and compact design, they ensure fast response and precise support for medical teams. Trusted by hospitals globally, our emergency medical devices enhance surgical safety and save valuable time in life-threatening situations.

Medsinglong MSLAED12 Automated External Defibrillator - Energy Selectable Biphasic AED for Adult & Child
Product Name:  Medsinglong MSLAED12 AED | Energy Selectable Biphasic Defibrillator Adult/Child
Latest Price:
Model No.:  MSLAED12
Weight:  Net weight: Kg
Minimum Order Quantity:  1 Set Set/Sets
Supply Ability:  300 Sets per Year
Payment Terms:  T/T,L/C,D/A,D/P,Western Union,MoneyGram,PayPal
Size:
Color:
QTY:

Quick Details

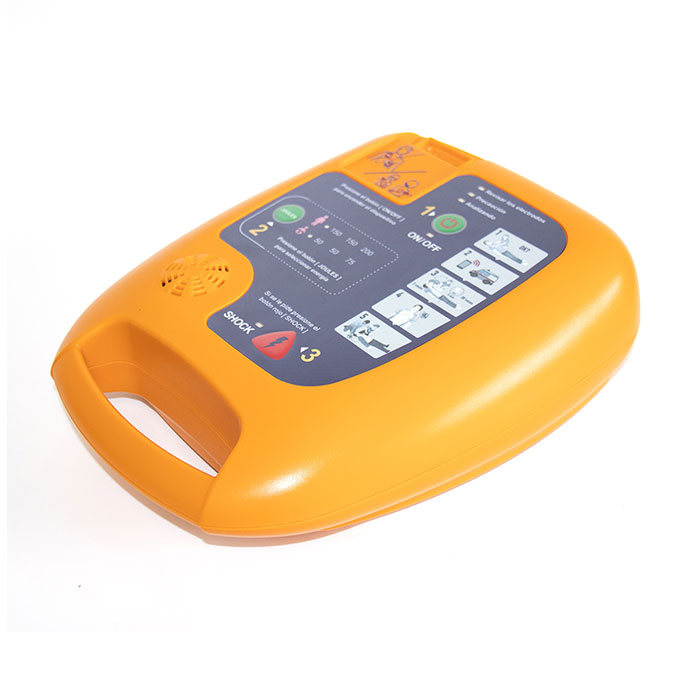

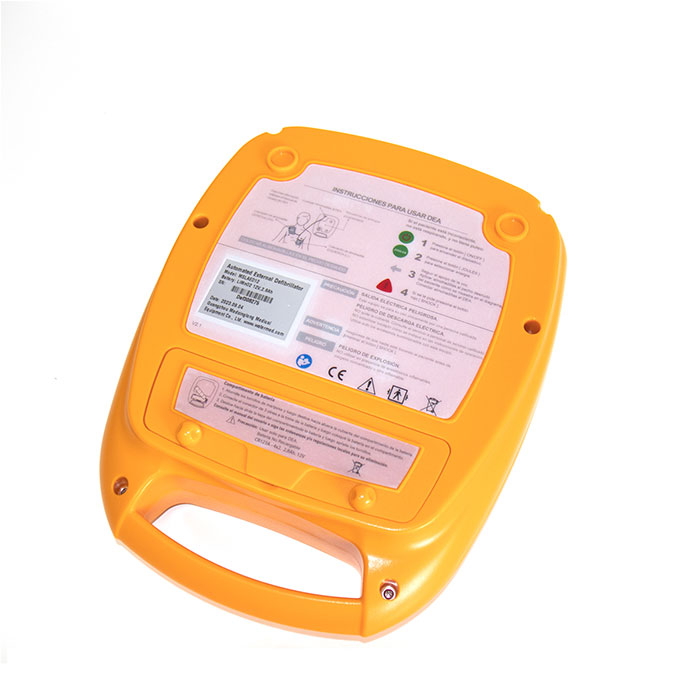

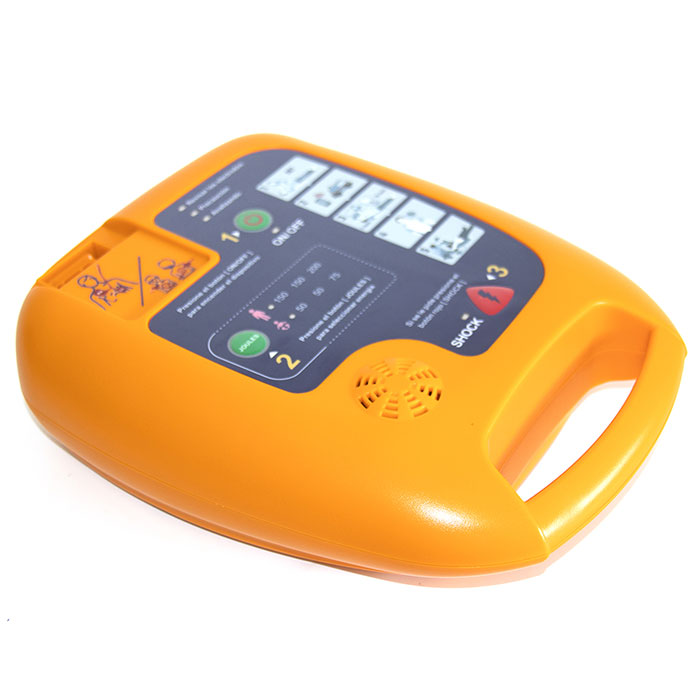

The Medsinglong MSLAED12 is an energy-selectable biphasic automated external defibrillator with adult and child modes. It features daily self-test, infrared data transmission, ECG storage and printing functions. Equipped with loud speaker and LED indicators, it offers clear guidance for easy operation. With compact size (1.9Kg) and waterproof buttons, this AED is ideal for emergency cardiac resuscitation in various public and clinical scenarios.

Packaging & Delivery

Packaging detail:Standard export package
Delivery detail:within 7-10 workdays after receipt of payment

Specifications

MSLAED12 Automated External Defibrillator Technical Specifications

Core Defibrillator Parameters

  • Applicable Modes: Adult, Child
  • Waveform: Biphasic truncated exponential
  • Max Energy: 200 Joules
  • Energy Sequence
    • Adult Mode: 150J, 150J, 200J
    • Child Mode: 50J, 50J, 75J
  • Charging Time (at 25℃): Less than 6s to 150J; Less than 8s to 200J
  • Voice Prompt: Extensive voice guidance for operation steps
  • Visual Indicators: Color LED indicators for each working step

Functional Features

  • Self-test Function: Daily, weekly and monthly automatic self-test for the automated external defibrillator
  • Data Management
    • Case Management: Records and stores cases via ACCESS database, supports data import and deletion
    • Memory Playback: Displays event type, time, description and ECG waveform
    • Data Transmission: Infrared transmission for data sync
  • ECG Settings: Waveform gain (5/10/20 mm/mv); Waveform speed (12.5/25/50 mm/s)
  • Printing Function: Preview and print basic data in playback interface
  • Operation Controls: Waterproof buttons; ON/OFF and Shock buttons
  • Speaker: High-quality loud speaker for clear instruction in public places

Physical Specifications

  • Power Supply: Non-rechargeable 12V 2800mAh Li-MnO2 battery (CR123A - 4x2 2.8Ah)
  • Dimensions: 300mm (L) × 240mm (W) × 80mm (D)
  • Weight (with battery): 1.9Kg (4.2 Pounds)

Environmental Parameters

  • Operating Temperature: 0℃ to 40℃
  • Operating Humidity: 30% to 95% (non-condensing)
  • Storage Temperature (without battery): -20℃ to 55℃
  • Storage Humidity (without battery): Up to 93% (non-condensing)
  • Atmospheric Pressure: Adaptable to normal working environments

Accessories

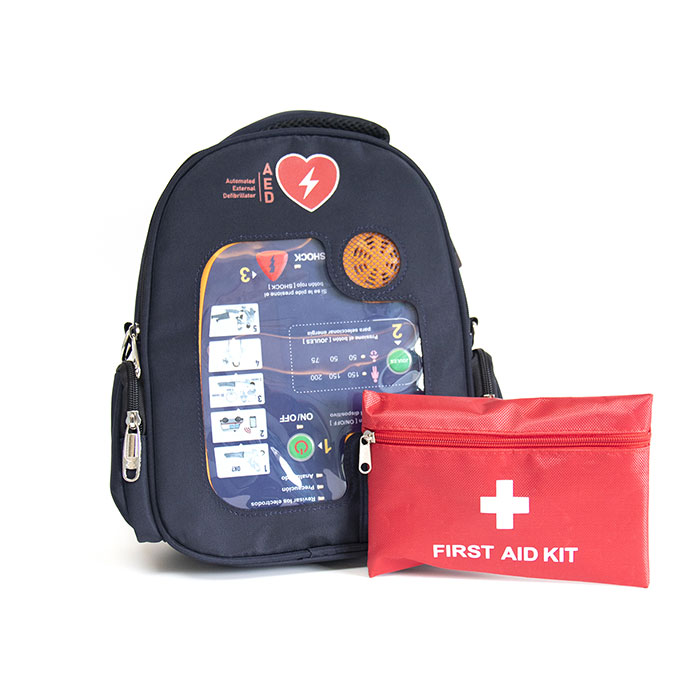

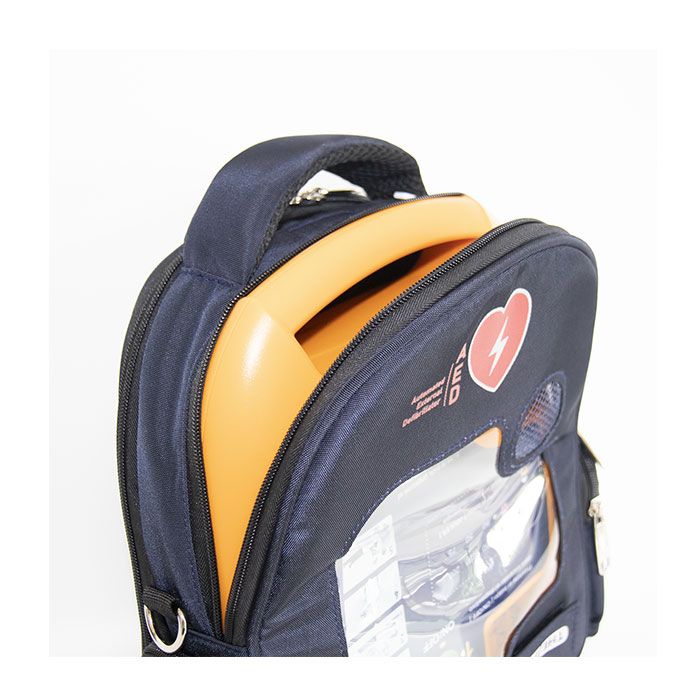

  • Soft hand carry case
  • Reflective sign, speaker protection, transparent panel
  • THE PAD protector socket
  • Disposable defibrillation pads (for adults and children over 20kg)
