Complete Technical Parameters

Basic Product Information

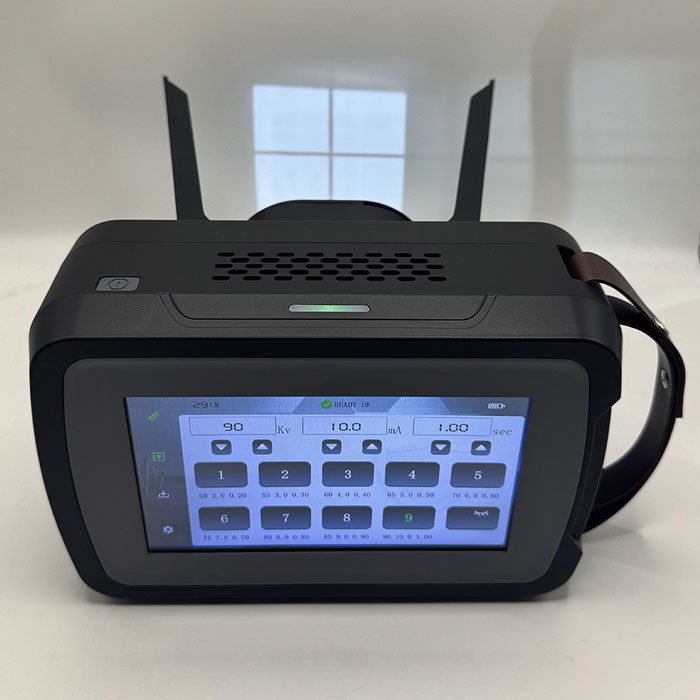

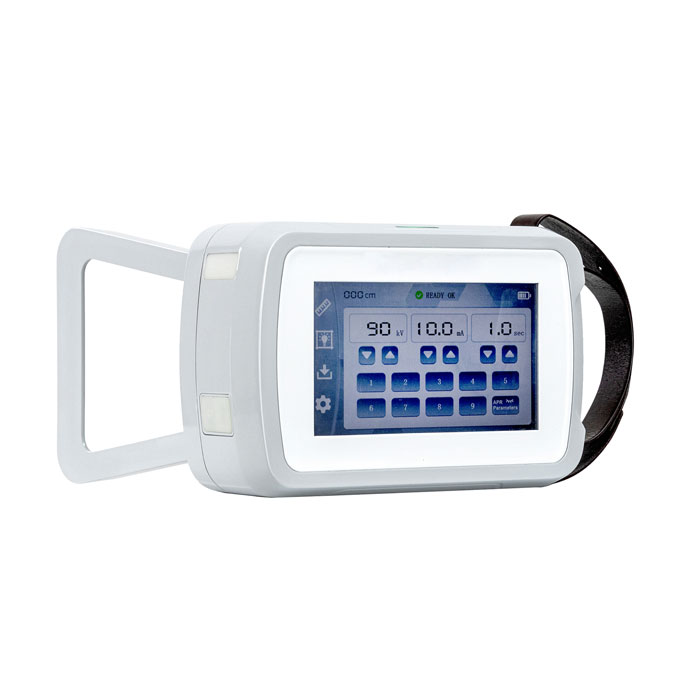

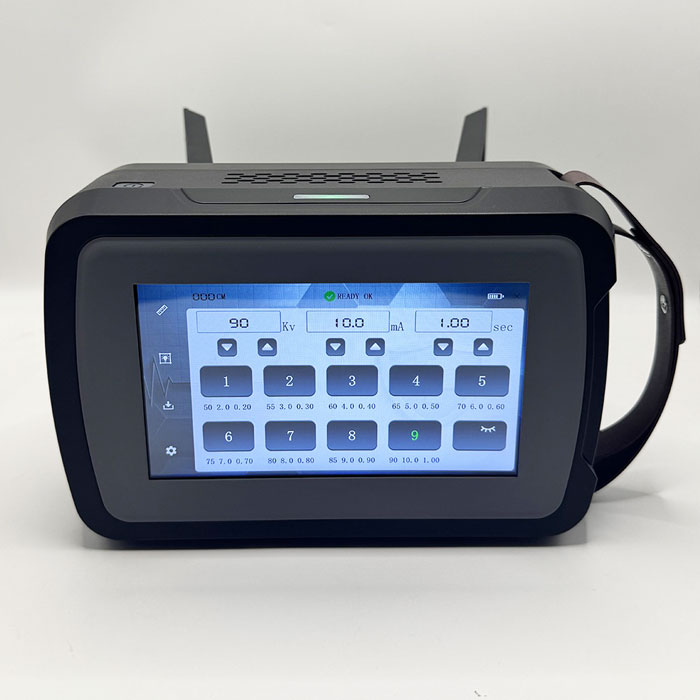

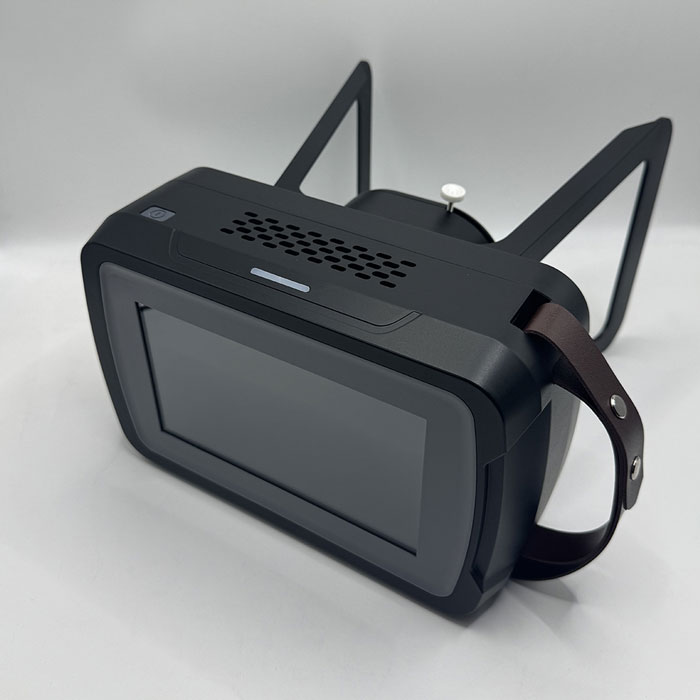

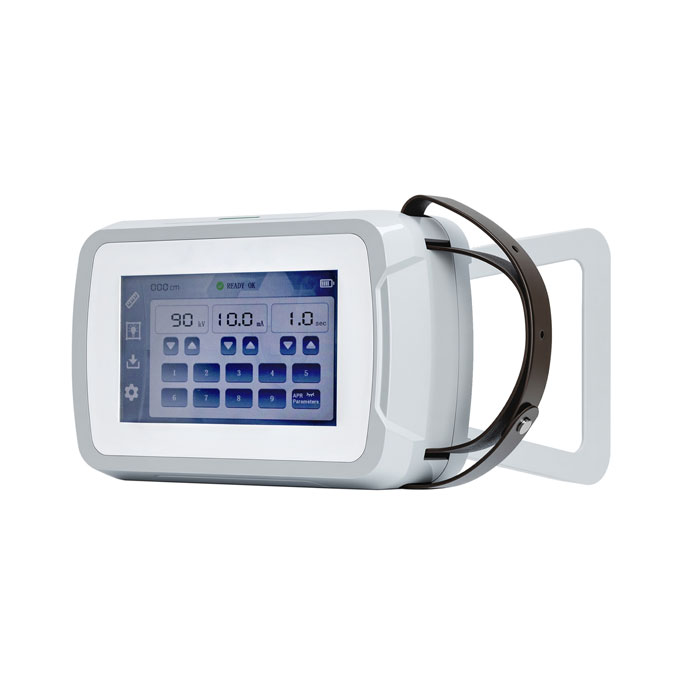

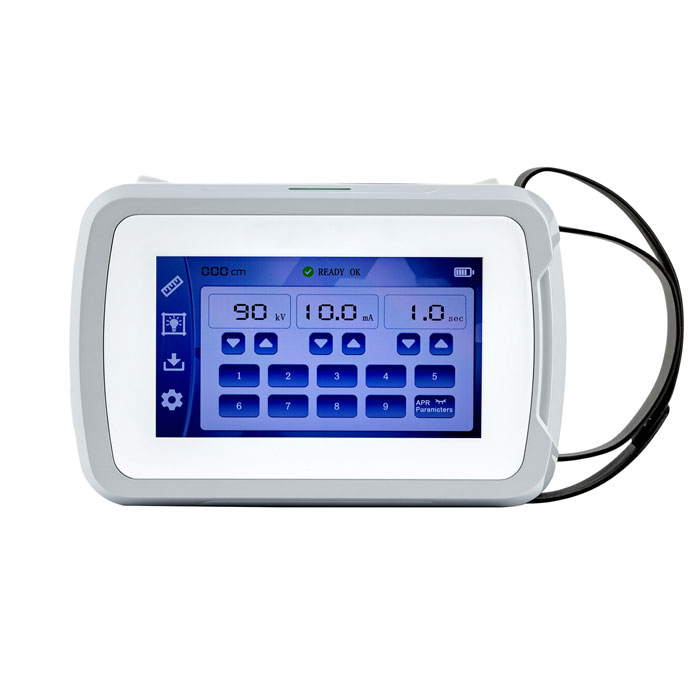

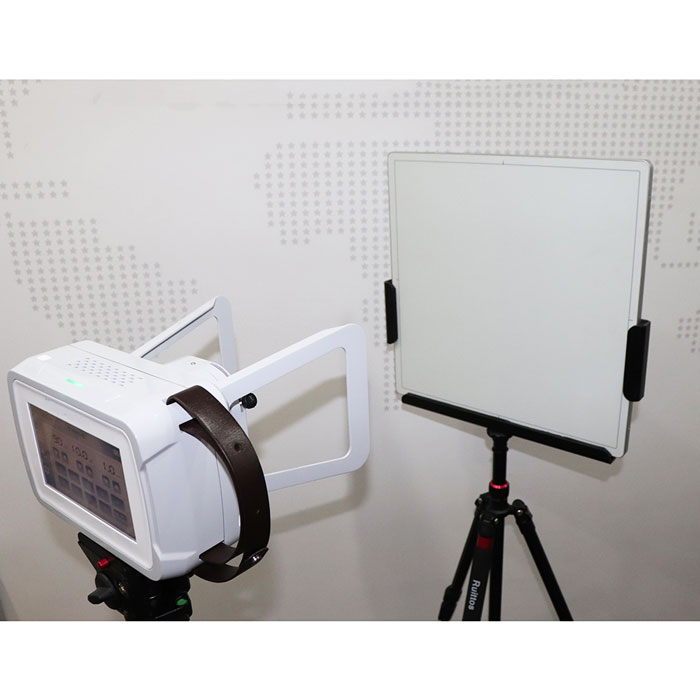

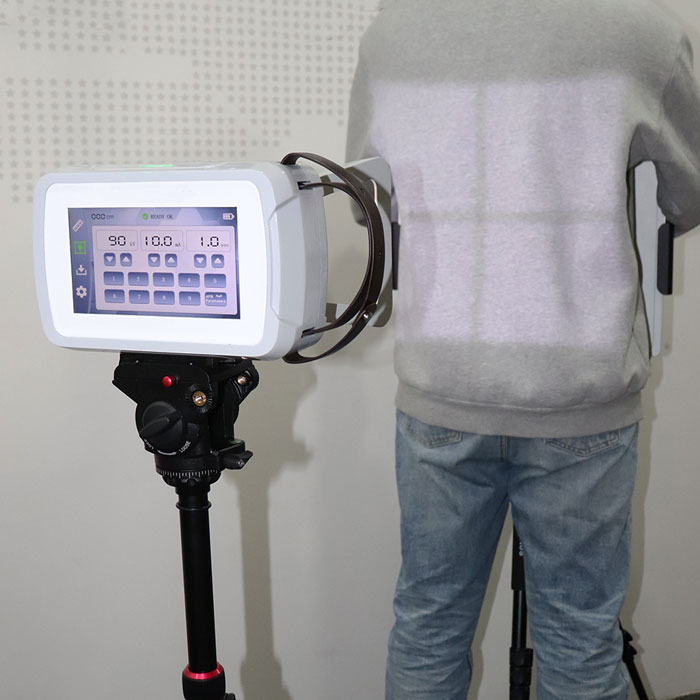

Model: MSLHDX05 Product Name: High‑Frequency Portable X‑ray Unit Application: This portable x‑ray unit supports both human clinical and veterinary radiography, suitable for clinics and pet hospitals. Optional Function: Image processing module

Power & X‑ray Output Performance

Rated Power: 900W, stable output for this high‑frequency mobile x‑ray generator Tube Voltage Range: 40‑90 kV Tube Current Range: 1‑10 mA Exposure Time Range: 0.1‑2 s Cooling Time: 60 times of the exposure time Focal Spot Size: 0.8 mm Anode Heat Capacity: 7000 J Total Filtration: 1.8 mm Al Power Supply Mode: Built‑in battery power supply

Interface & Control

Remote Exposure Interface: RJ11 interface Exposure Trigger: Wireless exposure handswitch & wired exposure handswitch for this low‑dose x‑ray equipment

Physical Specifications

Dimension (L×W×H): 225 × 155 × 263 mm Net Weight: 3.8 kg, compact structure for multi‑angle shooting

Working Environment

Operating Temperature: ‑10 ℃ ~ +40 ℃

Standard Packing List

1 × Main Unit 1 × Charger set 1 × Wireless Exposure Handswitch 1 × Wired Exposure Handswitch 1 × Black Carrying Case

Product Key Highlights

This MSLHDX05 portable x‑ray unit is a 900W battery‑powered high‑frequency mobile x‑ray generator for human and veterinary scenarios. It delivers 40‑90kV,1‑10mA adjustable output with 0.8 mm focal spot and 7000J anode heat capacity. Equipped with wireless and wired handswitches, this low‑dose x‑ray equipment weighs 3.8 kg. Complete packing includes a carrying case, ideal for on‑site diagnosis in clinics and pet hospitals.
