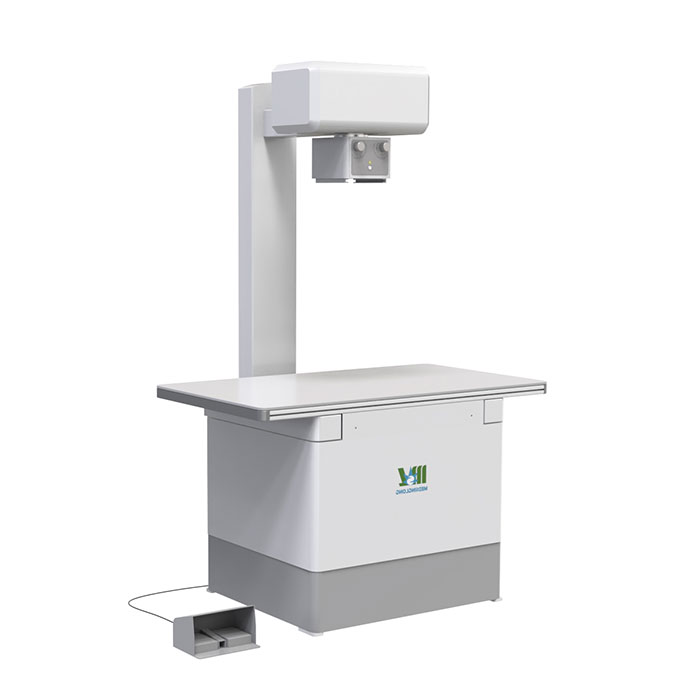

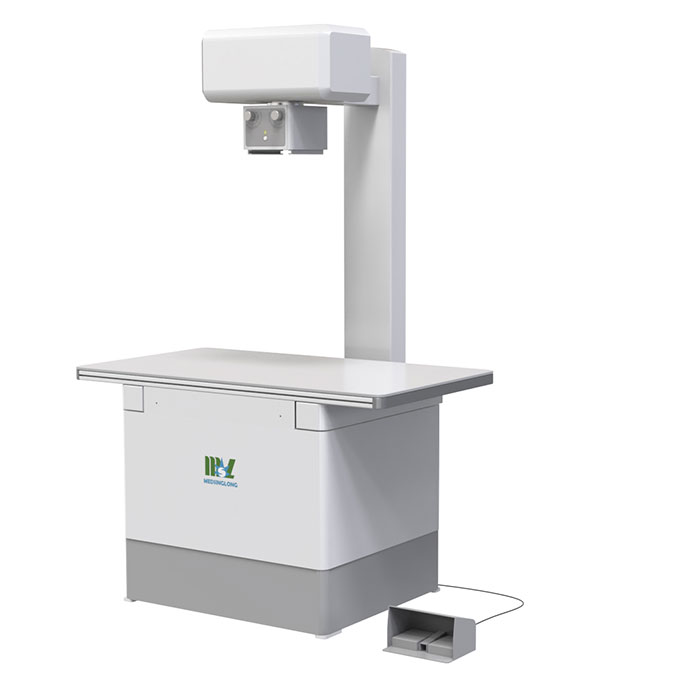

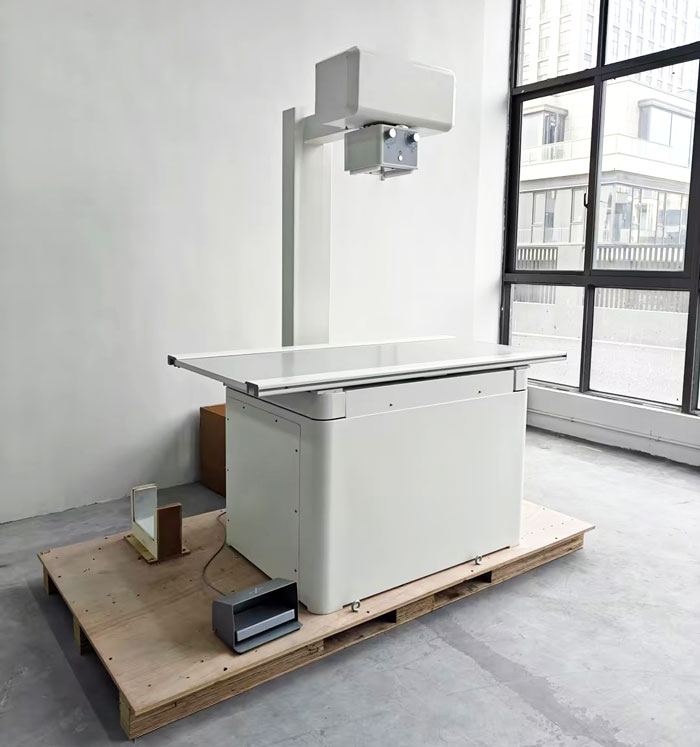

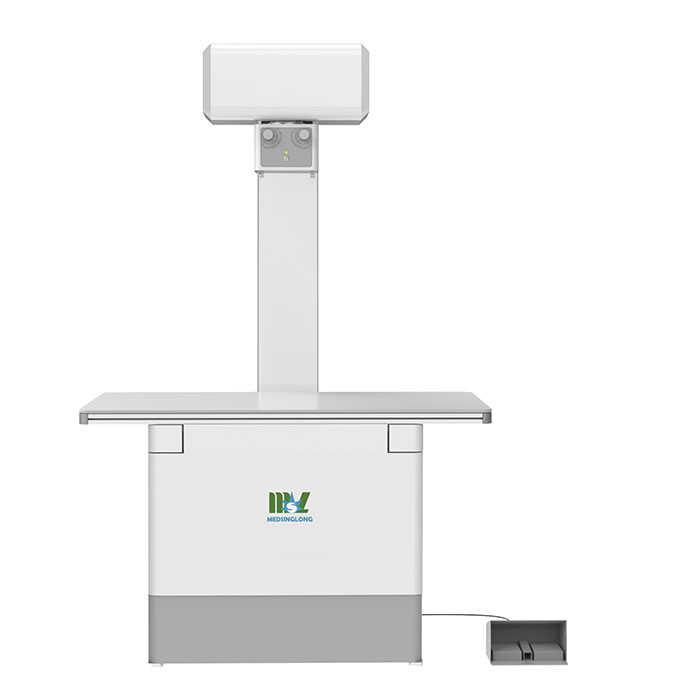

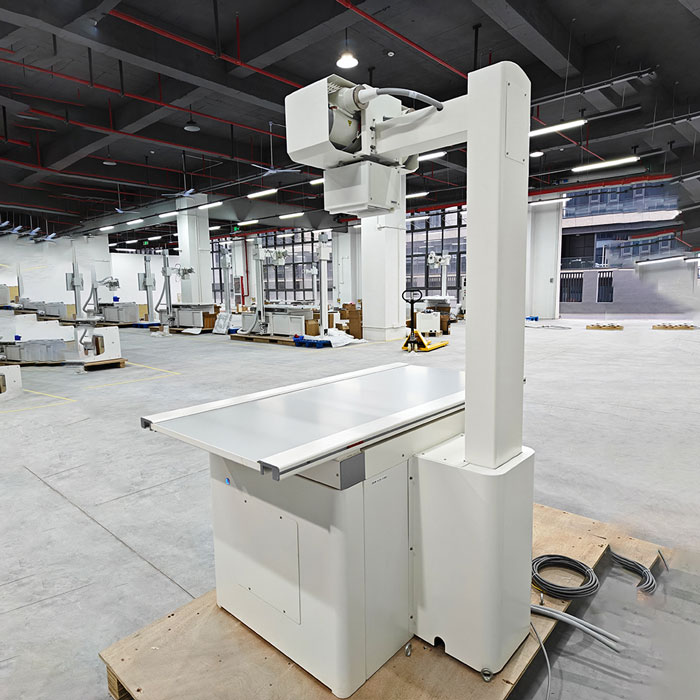

Product Specifications - Pet10 32KW Veterinary X-ray Machine (Vet Digital X-ray Imaging System)

This high-performance 32KW vet digital X-ray system is a dedicated veterinary X-ray machine designed for animal clinical radiography, featuring high power output, high-resolution imaging and humanized operation. As the professional Pet10 veterinary X-ray machine, it perfectly meets the radiographic needs of pet clinics and animal hospitals with stable and reliable performance. Below are its complete technical specifications:

Generator Specifications

• Input Power: 220V/110V, Single phase, ±10% 50/60HzDual voltage input ensures flexible use in different power supply environments for pet clinics and hospitals.
• Nominal Electric Power: 32KWThe high 32KW power makes this 32KW vet digital X-ray system suitable for all types of animal imaging with strong penetration.
• Tube Current (mA): 10-400mAWide current range adapts to the imaging needs of small and large animals in clinical scenarios.
• Tube Voltage: 40kV-150kV, 1kV stepThis 40-150kV animal X-ray machine offers precise stepless voltage adjustment for accurate animal tissue imaging.
• Current Time Product (mAs): 0.1-100mAs
• Loading Time (ms): 1-6300ms
• Inverter Frequency: 25kHz±5%Stable high-frequency inversion technology guarantees consistent energy output for clear vet high resolution X-ray imaging results.

X-ray Tube Specifications

• Focal Spot: 0.5mm/1.0mmDual focal spot sizes support both high-detail small animal imaging and large-field large animal radiography.
• Focal Power: 10KW/33KW
• Tube Voltage Range: 40-125KV
• Anode Heat Capacity: 100KJ (140KHU)Large heat storage capacity enables continuous clinical operation for busy pet clinics and hospitals.
• Anode Target Angle: 16°
• Rotary Anode: 2800rpm (50Hz); 3200rpm (60Hz)Variable-speed rotary anode ensures uniform heat distribution and extends the service life of the X-ray tube.

Collimator Specifications

• Power Supply: AC/DC 24V ±10%
• Field Light: LED, 5W
• Collimator Rotation Range: 360° any angleFull-angle rotation meets flexible positioning needs for different animal postures during radiography.
• Min. Brightness: ≥160Lux
• Maximum Field Size: ≥430mm×430mm at SID=100cm
• Light Timer: 30±2s

Radiographic Table Specifications

• Type: Mobile Type, Four-way Floating Tabletop, Foot Pedal Operated Tabletop FloatThe humanized design of the tabletop greatly facilitates animal positioning for the Pet10 veterinary X-ray machine.
• Table Size: 1400×1000mm×1800mmSpacious tabletop adapts to the imaging of various animal sizes from small pets to large animals.
• Range of Vertical Floating: 200mm
• Range of Horizontal Floating: 300mm
• Bucky Size: 17×17inch
• Tube Rotation Angle Range: Fixed
• Tube Column Rotation Range: Fixed
• Column Moves Up and Down: Fixed
• Tube Column Moving Range Along Bed: Fixed
• Tube Vertical Movement Range: Fixed

Core Functional Features

• Complete Professional VET Software: Customized software for animal radiography, the core advantage of this professional vet software X-ray device.

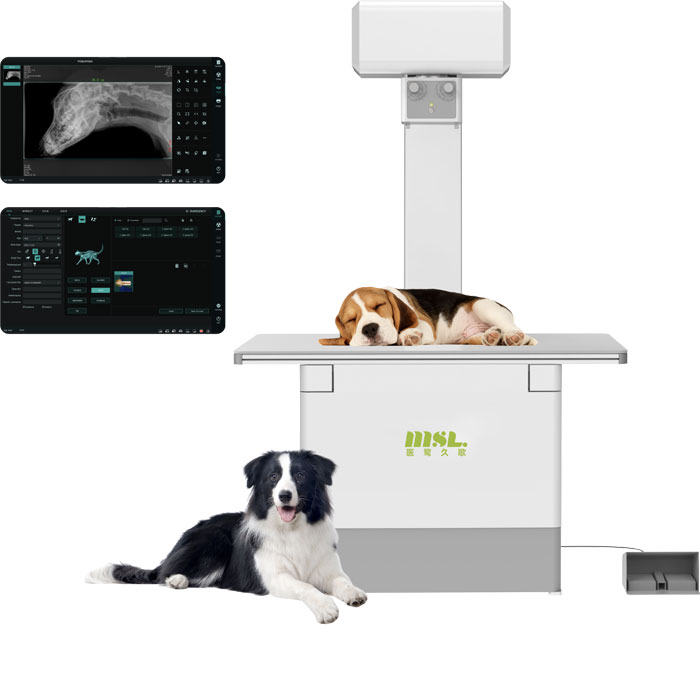

• Convenient Touchable HD Screen: Intuitive HD touch screen vet X-ray operation, simple and easy to master for veterinary staff.

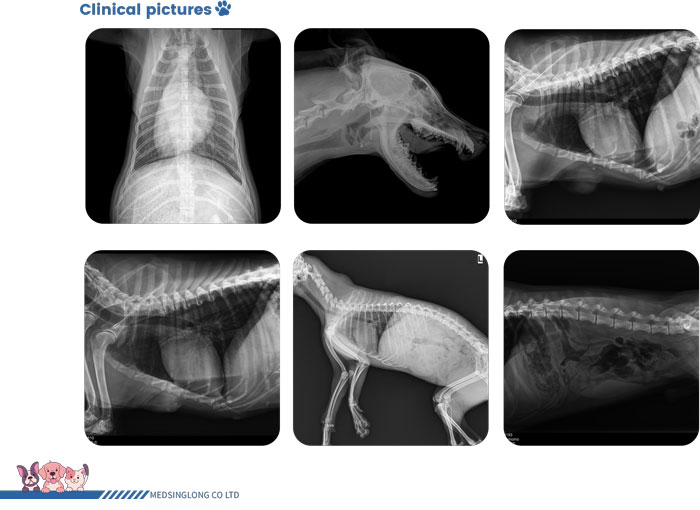

• High Resolution Imaging Effect: Delivers clear, detailed imaging for accurate animal disease diagnosis and clinical judgment.
• Hospital Control System Connection: Supports software connection with hospital control systems for unified data management.
• Cross-room Connection: Enables DR room and clinics room connection for clinic animal X-ray equipment remote operation and imaging.
• Clinic Room Operation & Imaging: Realizes both imaging and operating functions in the clinic room, improving the efficiency of pet diagnosis and treatment.
